Wire Bending Testing Machine RS-8116-6A Wire Bending Testing Machine RS-8116-6A

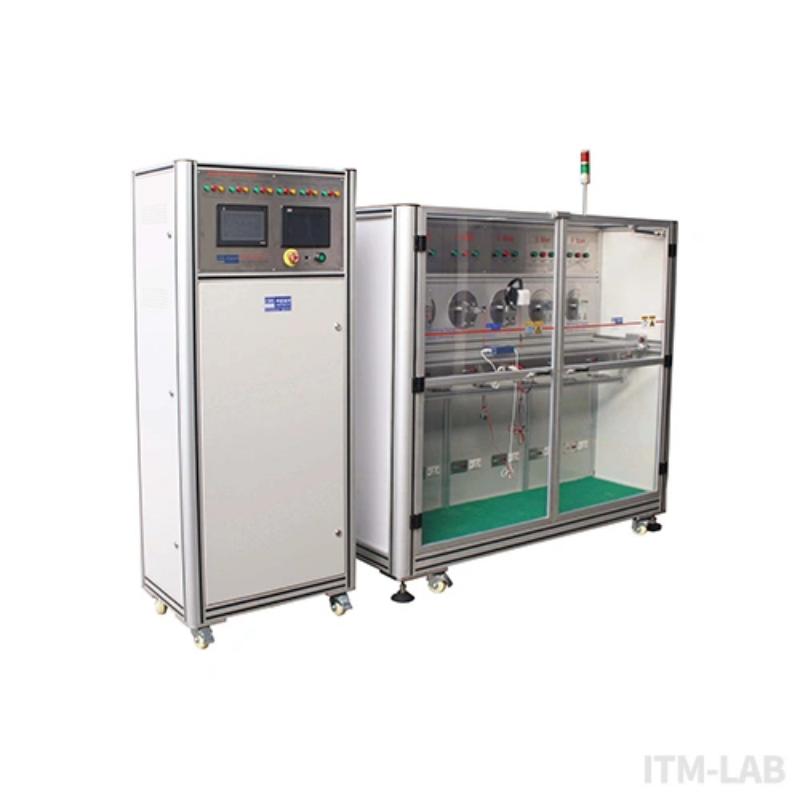

Wire Bending Tester RS-8116-6A

It is suitable for bending resistance test on headphone cable.USB cable,multicore cable conductor,flat cable and signal line,etc.The test method is as follows:Firstly,clamp one end of the wire rod and fasten it to the rotation clamp. Then have it make a horizontal rotaion with hanging load to

GET A QUOTE

Specification

Model RS-8116-6A
System control It adopts Japanese OMRONRtouch screen and MITSUBISHIRPLC,and each station works independently
Impedance test module It is equipped with impedance test module and color touch screen
Drive Six Japanese PanasonicRAC servo motor
Reducer Six Japanese ShimpoRAC servo motor
Test speed 1~60rpm±0.5rpm
Test angle range Commonly 0~±950 or 0~±1800,rotation angle of concentric jig is not limited
The least angle display 0.1
The cycles range 1-999999 cycles
Diameter of rotary disk ￠210mm
Weight Each six of 100g,225g,300g,400g,
Main unit dimension W1780xD860xH1600mm
Control box dimension W720xD500xH1700mm
Total weight 555kg
Power AC 220V 50HZ 12A
