Cable Testing Machine

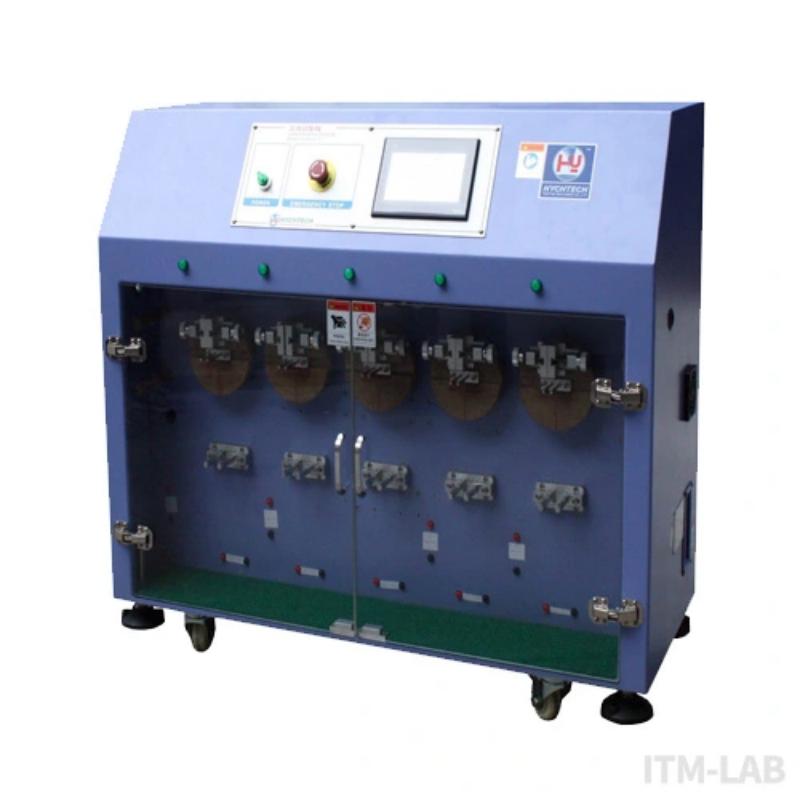

Cable Bending TesterRS-8105A-5

Purpose:

It is suitable for bending test of earphone cable, USB cable, multi-core cable, communication cable,flat cable and signal cable.

The test method is as follows:one end of the wire rod is short is short clamped, fixed on the rotating disc, and rotated left and left and right under a certain lifting load, so as to evaluate whether the wire rod has good conduction after N times of testing.

Test Standard:

EIA-364-41D cable flexing test procedure for electrical connectors.


GET A QUOTE

Specifications:

Model RS-8105A-5
Control system  It adopts Japan OMRON® touch screen and Mitsubishi® PLC, and each station works independenty
Drive Japan Panasonic® AC servo motor
Test speed 1~60cpm±2cpm
Test angle range Commonly 0~±90° or 0~±180°, rotation angle of concentric jig is not limited
The least angle display 1°
Test cycles setting 1~999999 cycles
Batch tesidence time 1~10 minutes
Guide rod R1.5-R12MM
Diameter of rotating disc 100mm
Weight 50g, 100g, 150g, 250g, 300g, 500g (all the six)
Size of machine W980xD460xH940mm
Weight of machine 185kg
Power supply AC220V 50HZ 10A
