Electronic Product Reliability Tester

Key load durability testing machine Key load durability testing machine

Key load durability testing machine RS-8330B2W

Key load durability testing machine RS-8330B2W Adopt 7 Inch OMRON TTT (OMRON) Color Touch Screen + Mitsubishi PLC Control, Chinese and English Control Interface, Two Test Modes: Continuous Test Mode---- Fast Continuous Test Mode; The intermittent test mode ---- meet the requirements of the button hold time test, and the button hold time can be set to 0.1-99.99 seconds and the rise hold time (push head leaves the button). The test time can be set between 0 and 99999999, and when the set time is reached, the memory function and auto shutdown are used to power off. Testing speed: 60-360 times/min in continuous test mode, 5-100 times/min in intermittent test mode.

GET A QUOTE

Products Show



Key load durability testing machine
Key load durability testing machine RS-8330B2W Adopt 7 Inch OMRON TTT (OMRON) Color Touch Screen + Mitsubishi PLC Control, Chinese and English Control Interface, Two Test Modes: Continuous Test Mode---- Fast Continuous Test Mode;

Product Application

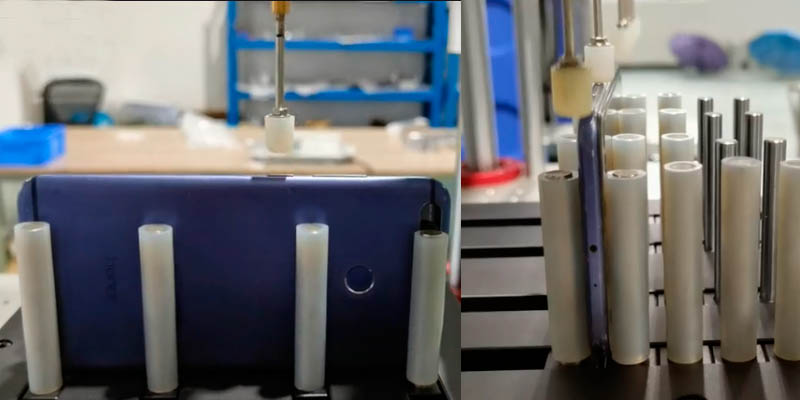

This machine is applied to Computer Keyboard, Notebook Keyboard, Mobile Phones, Calculators, E-Readers, Electronic Dictionary, Game Pens, Remote Controls, etc
Тестер выносливости под нагрузкой RS-8330B2w

Technical Parameters



Probe installation range 350x250mm 600x400mm
Press down holding time 0.1~99.99 seconds (adjustable)
Ascent dwell time 0.1~99.99 seconds (adjustable)
Cycle times setting 0~99999999 times (adjustable)
Test speed Continuous test mode 60~360 times/min can be set
Intermittent test mode 5~100 times/min can be set
Test Mode Continuous test mode, intermittent test mode
Accessories 15 load adjustment probes (optional), 5 probe fixing rods (optional), load calibration table (standard), electronic scale (2000gf) standard, large clamping fixture
Host working environment ≤50℃, 95%RH can run for a long time
Host size W600 x D400 x H1000mm W850x D600 x H1050mm
weight 105kg 190kg
