Purpose: The XYZ fully automatic press testing machine developed and manufactured by our company is a high-tech product integrating precision machinery, automatic control and precise pressure control technology. Its core is a multi-axis
Product Application

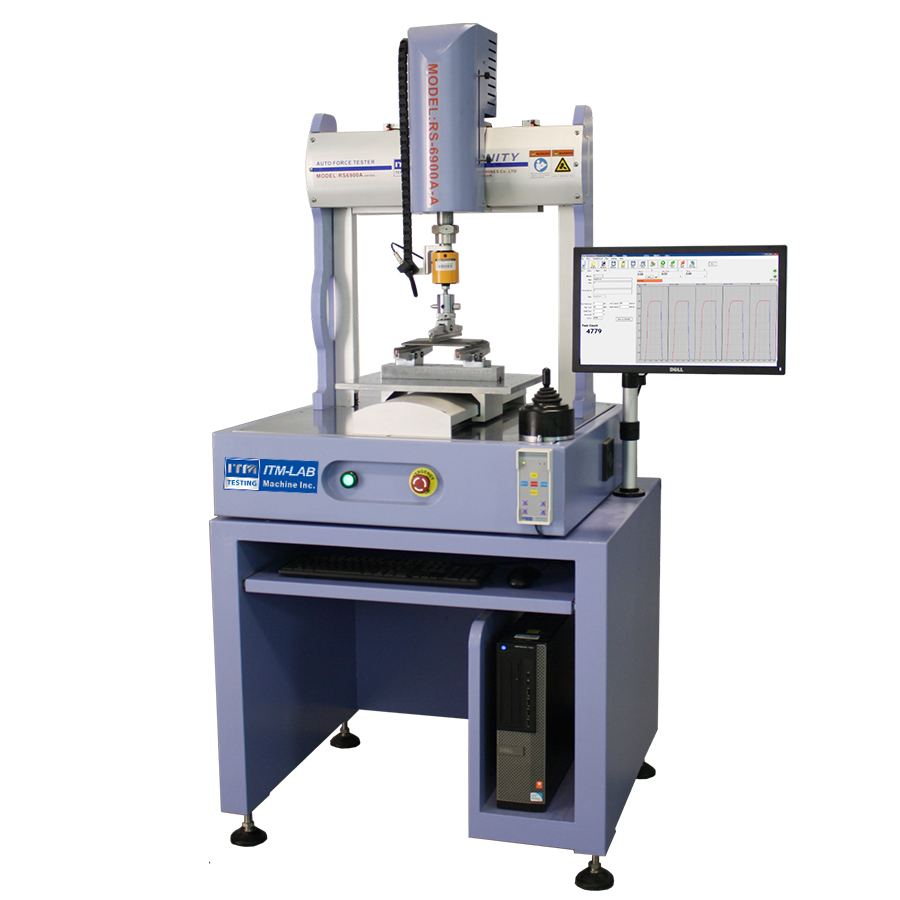

The RS-6900A2 load displacement curve testing machine is suitable for multi-point/single point holding force testing or three-point, four point bending testing or key curve testing of products such as glass, touch screen groups, mobile phones, tablets, laptops, e-books, electronic dictionaries, etc.
Typical tests
Mobile phones, tablets, computers, single or multi-point automatic holding force, multiple cycle testing
Glass, LCD, touch screen module single or multi-point automatic holding force, multiple cycle testing
USB、 Automatic lateral force retention test between headphone plug and mobile phones, tablets, computers, etc
Multi point static retention testing of products
Load curve testing of mobile phone and tablet buttons
Typical tests
Mobile phones, tablets, computers, single or multi-point automatic holding force, multiple cycle testing
Glass, LCD, touch screen module single or multi-point automatic holding force, multiple cycle testing
USB、 Automatic lateral force retention test between headphone plug and mobile phones, tablets, computers, etc
Multi point static retention testing of products
Load curve testing of mobile phone and tablet buttons
Technical Parameters
| Z-Axis Maximum Load | 50Kg or 100Kg |
| Z-Axis Drive Mode | Japanese Panasonic Servo Motor |
| Control Mode | Up And Down |
| Drive (Lifting) Range | 0~150mm |
| Load Measurement Range | 0~500N(50kgf)or 1KN |
| Load Resolution | 0.01gf |
| Load Accuracy | Indication ±0.2% F.S (10%~100% Of The Maximum Range) |
| Z-Axis Lifting Range | 0~150mm |
| Displacement Resolution | 0.001mm |
| Displacement Accuracy | ±0.03mm |
| Z-Axis Test Speed Range | 0.1~500mm/min |
| X-Y-Axis Drive Mode | Japanese Panasonic Servo Motor |
| Control Mode | X: Left And Right Y: Front And Back |
| Drive Range | X:0~300mm Y:0~300mm |
| Displacement Resolution | 0.002mm |
| Displacement Accuracy | ±0.05mm |
| Moving Speed Range | 0.1~200mm/sec |
| Allowable Sample Size | W300xD260mm xH100mm |
| Machine Weight (Approx.) | 425kg |
| Machine Size | W860xD755mmxH1780mm |
| Power Supply | AC220V 50Hz 10A |
Product Advantage
Advantages of three-axis automatic load testing machine:

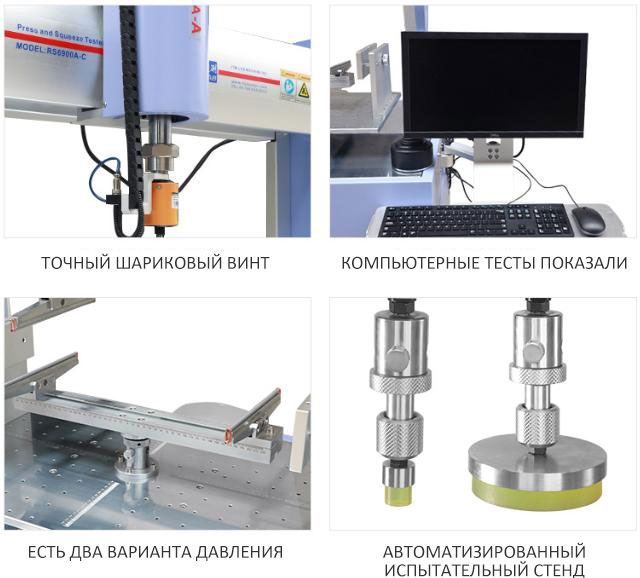

Precision ball screw: XYZ three axes are driven by servo motor precision ball screw drive, accurate positioning, good repeatability, low noise, and stable operation

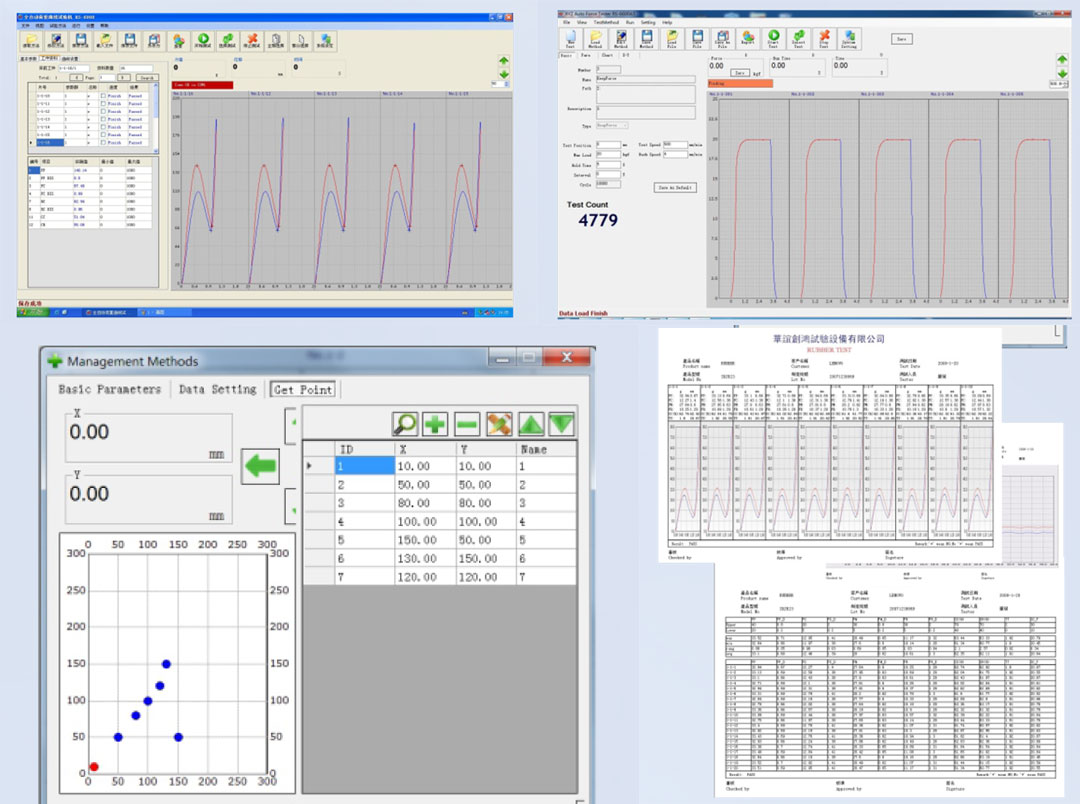

Computer test display: It can input large test stroke and load, computer automatic control and test
Automatic test platform: X, Y, Z three-axis coordinate machine can be arbitrarily input for automatic displacement test, and the test value is recorded
Intelligent control panel: easy to learn, realize software and manual operation, and generate test reports
Two types of pressing heads are available: according to different product tests, the appropriate pressing head can be selected, and the compression is sensitive
Easy to install
The displacement accuracy ± 0.03mm
Load accuracy±0.5%
Precision ball screw: XYZ three axes are driven by servo motor precision ball screw drive, accurate positioning, good repeatability, low noise, and stable operation
Computer test display: It can input large test stroke and load, computer automatic control and test
Automatic test platform: X, Y, Z three-axis coordinate machine can be arbitrarily input for automatic displacement test, and the test value is recorded
Intelligent control panel: easy to learn, realize software and manual operation, and generate test reports
Two types of pressing heads are available: according to different product tests, the appropriate pressing head can be selected, and the compression is sensitive
Easy to install
The displacement accuracy ± 0.03mm
Load accuracy±0.5%
