Standard
GB/T4857.4,GB/T4857.16,ISO2872,ASTM D642,TAPPI-T804,JIS-Z0212.
Specification

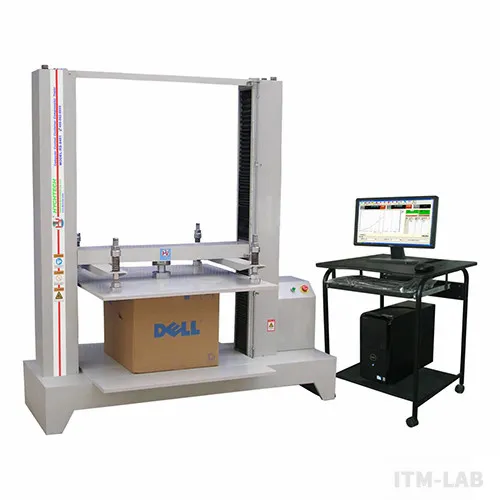

| Model | RS-8401 |
| Capacity (optional) | 10KN, 20KN, 50KN |
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2 |
| Load resolution | 1/250,000 |
| Load accuracy | ±1% |
| Test space | 1000x1000x1200mm, 1200x1200x1200mm or 1500x1500x1500mm |
| Test speed | 0.001~200mm/min |
| Stroke resolution | 0.001mm |
| Software | Special close-loop control software |
| Motor | AC servo Motor |
| Dimension (WxDxH) | 1750x1000x2000mm or 1950x1200x2000mm |
| Weight | 1250Kg or 1550kg |
| Power supply | AC220V 5A or specified by user |
