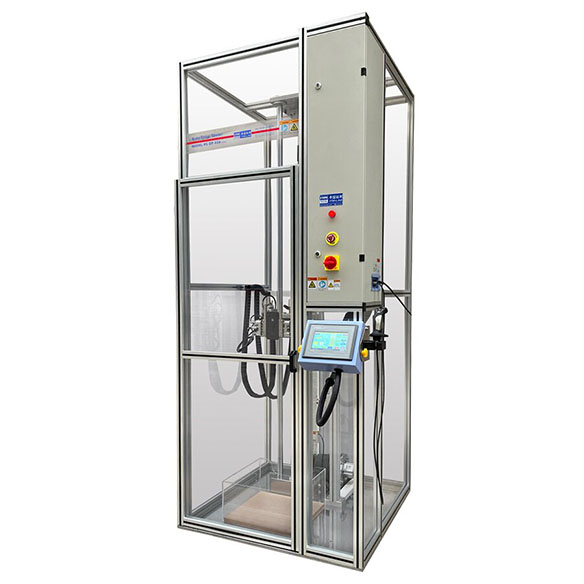

PRODUCT APPLICATION
The purpose of this machine is to evaluate the impact of product drops on the performance of products in real use that the customer may have: mobile phones, tablets, chargers, e-readers, electronic dictionaries, batteries, touch screens, headphones, etc.
PRODUCT PARAMETERS
| Model | RS-DP-03A2 |
| Maximum test height: | 300~1800mm or 2000mm |
| Maximum drop weight: | 2kg |
| Drop height setting | Touch screen display height |
| Minimum breakaway height: | 300mm |
| Number of drops: | 0~999999 (adjustable) |
| Product positioning: | Adsorption or clamping |
| Dropping medium: | Steel plate, wood plate, marble plate |
| Gas source: | ≥0.5MPa |
| Machine size: | W1000xD1180xH2415mm |
| Machine weight: | 420kg |
| power supply: | AC220V 50Hz 3A |
Functions
- Acceleration and speed will be displayed automatically after impact drop test.
- Completely solve the mobile phone flipping problem when falling, the impact site is accurate.
- Automatic induction adsorption function.
- After each drop, automatically return to the adsorption height.
- Drop height, adsorption height can be set, drop times can be displayed.
- Safety door protection.
- A variety of drop board configuration: marble, wood, steel plate.
- Chinese and English operation interface.
Accessories

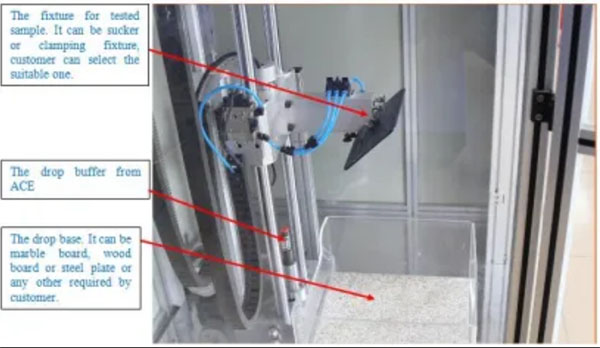

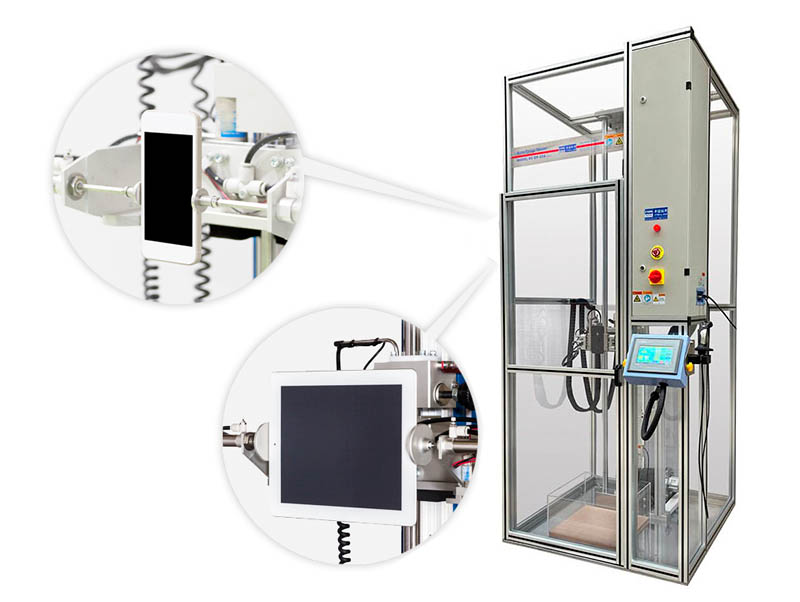

The fixture for fixing tested sample:
Software

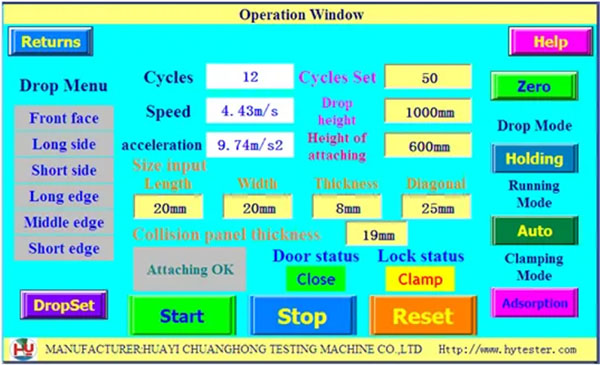

The testing interface:

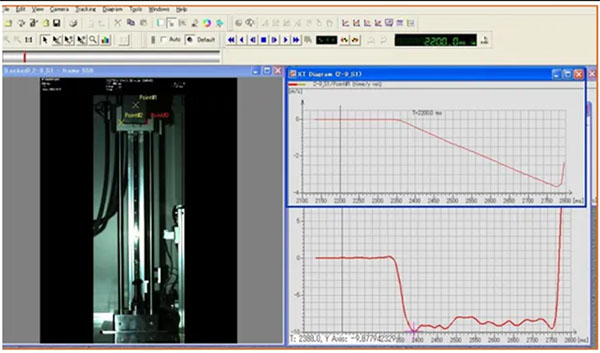

The speed and stability calibration
The drop speed and the stability of this tester have been verified by the high speed camera.
Advantages
Structures and Functions:
- 1.the smartphone drop tester adopts AC variable-frequency and variable-speed motor plus synchronous pulley for adjusting drop height range, which is durable.
- 2.Drop impact tester adopts a color LCD touch panel plus PLC for motion control and set, by which drop cycles can be reset and power-off memory function is provided; all control parameters will be set via the touch panel: drop, reset, height resetting, number of drops and account etc.;
- 3.Operator just needs to input the size of the product to be subject to drop test via the screen only: Length L, Width W, Thickness T, Diagonal Interval DI; so that the test can auto raise up to the set drop height for testing;
- 4.After the drop finishes, the fixture block will automatically return to the set sucking height (generally, at a height of 600~800mm).
- 5.4 corners, 8 edges, 2 faces, 2 sides can be set to drop and impact on base, if the product is not regular shape, we can make the clamping fixture for the test.
- 6.The product will be released at the height around 300mm, that can make sure the impact gesture of the product on the base.
- 7.The drop bases: steel plate, marble board, wood board.
