PRODUCT APPLICATION

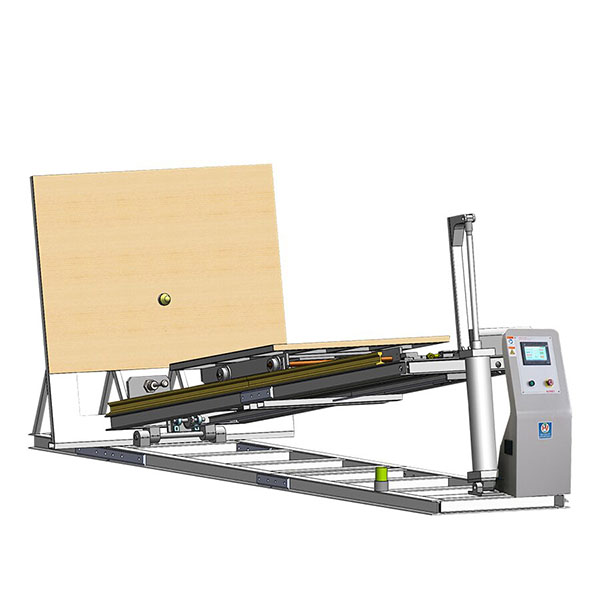

RS-15 series of skew test bench to simulate the ability of product packaging to withstand impact in a real environment, such as moving, shelf storage, engine sliding, motorcycle loading and unloading, product transportation, etc. technologies, factories for the production of packaging materials, as well as in the departments of foreign trade, transport, etc.
Параметры продукта
| The maximum mass of the specimen that can be carried: | 500KG or negotiate | |
| Maximum allowable specimen size: | Length × width × height: 1500mm*2000mm*2500mm (maximum product size) | |
| Angle between impact surface and orbital plane: | 90°±1 | |
| The impact surface of the baffle should be flat and its size should be larger than the size of the impacted part of the test sample. | ||
| The impact surface of the baffle has sufficient hardness. | ||
| When its surface is subjected to a load of 160kg/cm2, the deformation shall not exceed 0.25mm. | ||
| A damper is installed on the baffle structure frame to prevent secondary impact. | ||
| Maximum sliding length of the specimen: | 3000mm 30 00mm |
|
| Impact velocity range: | 1.0～3.5m/s | |
| Impact plate size: | W2000×H2500 mm | |
| Impact velocity error: | ≤±5% | |
| slope: | 0～20° cylinder adjustment, error ±1° | |
| Control System: | LCD touch screen |
| voltage: | Three-phase 380V, 50/60Hz |
| working environment: | Temperature 0～45℃, humidity ≤85% (no condensation) |
| Dimensions: | Approximately 6000mm long × 2200mm wide × 2600mm high |
| The test system meets the specifications: | GB/T 4857.11-2005，GB/T1019.2008，ISTA 1A |
