Product Description

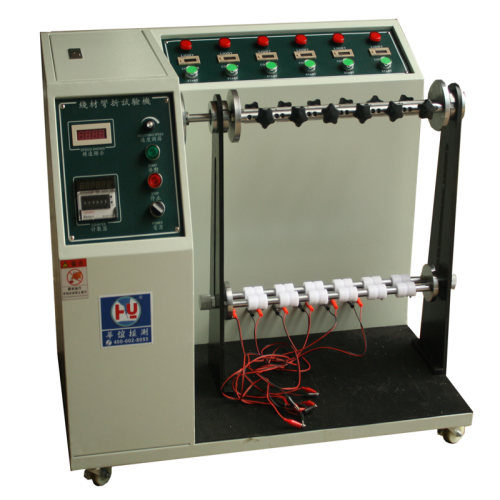

This plug wire beding testing machine is equipped with 6 sets of clamps to test the folding strength of wires, plug leads and wires for mobile phone/communication industry accessories. The test method is to fix the sample on the clamp and add a certain load. During the test, the clamp swings left and right. After a certain number of times, check the disconnection rate; or when the power cannot be supplied, check the total number of swings. This machine can automatically count. When the sample is bent to the point where the wire is disconnected and the power cannot be supplied, it can automatically stop the operation and alarm.
Applicable Standards : UL817 IEC60884-1
This wire bending testing machine is to test the plug and wire bending resistance. When the specimen breakages, power can not go through or can not reach the pre-set count, it will stop automatically.
Features
2. The key components of this machine are all reliably sourced from Japan, with various dials available to make your tests precise and effective.
3. This machine provides clamping accessories for holding the wire, allowing for bending fatigue tests on fixed sections of the wire; the surface of the clamp is covered with anti-slip rubber to prevent injury to the specimen.
4. It can test at least 6 wires simultaneously, providing a certain amount of tensile force along the wire direction, which is adjustable (weights: 50g, 100g, 200g, 300g, 500g, six of each).
5. Able to set the wire bending count, with a range from 0 to 999999; it can automatically stop and alarm after reaching the set value.
Technical Parameters
| Fixture | 6 sets |
| Swing Angle | 30°, 45°, 60°, 90°, 180° adjustable |
| Swing Speed | 10~60 c.p.m. adjustable |
| Automatic Counter | 6, counting separately |
| Load | 50, 100, 200, 300, 500g |
| Volume | 86×51×81cm |
| Weight | 132kg |
| Power Supply | 1∮,AC220V, 3A |
