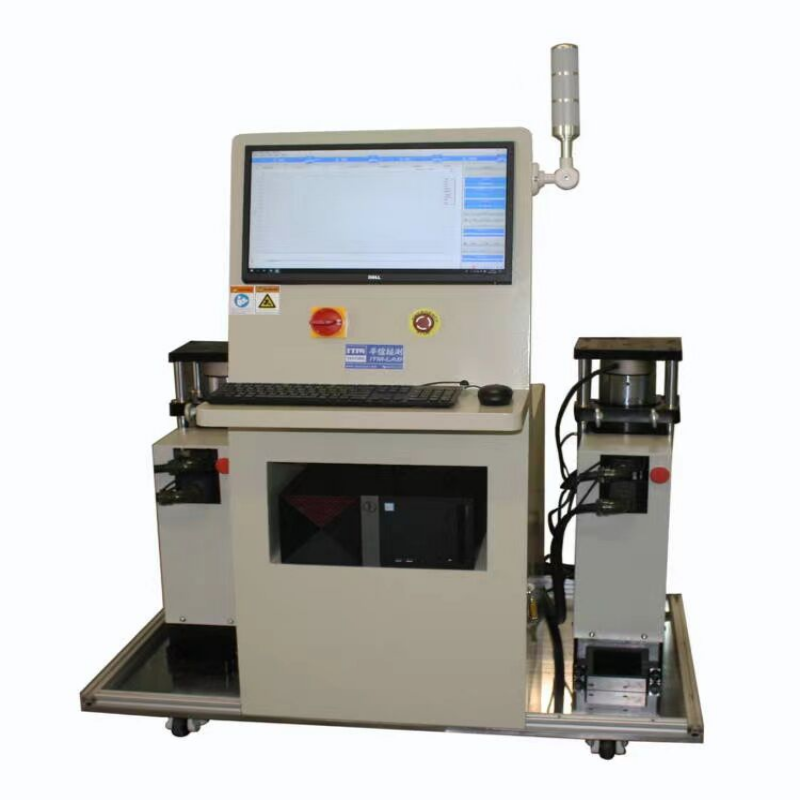

Battery module fatigue testing machine MODEL:RS-6010

A device that is installed into the battery module frame and can efficiently simulate the expansion force of the battery core. It can continuously output alternating loads or stable loads and quickly evaluate the fatigue strength of the module frame

GET A QUOTE

Drive mode:

Panasonic servo motor drive, force value closed loop

Test capacity:

10kN /20kN /50kN /100kN /150kN

Force Value Loading Range:

1~100%FS (continuously adjustable)

Force value accuracy:

± 0.5%FS (Grade 0.5)

Loading trip:

0~40mm

Displacement accuracy:

≤±0.01mm

test pattern:

Single site loading, duplex site synchronous loading

Loading speed:

Can run at 1 cycle = 20 sec to 600 sec

Data Acquisition Frequency:

50~800Hz

compatibility:

Different specifications of imitation blocks can be installed and replaced, and two kinds of fixed screw interfaces are reserved

Insulation requirements:

Overall insulation protection: 500M ohms, leakage current: 100 mA

pencil:

Distinguish the high and low voltage wiring harness to meet the requirements of plugging force and life

Pollution, electromagnetic radiation:

Compliance with the relevant EMC requirements

noise:

≤68dB

safe guarding:

Leakage protection, travel limit, force value overload protection

weight:

About 1,600 kg

source:

AC 220V 50Hz

Emergency-stop response time:

100ms
