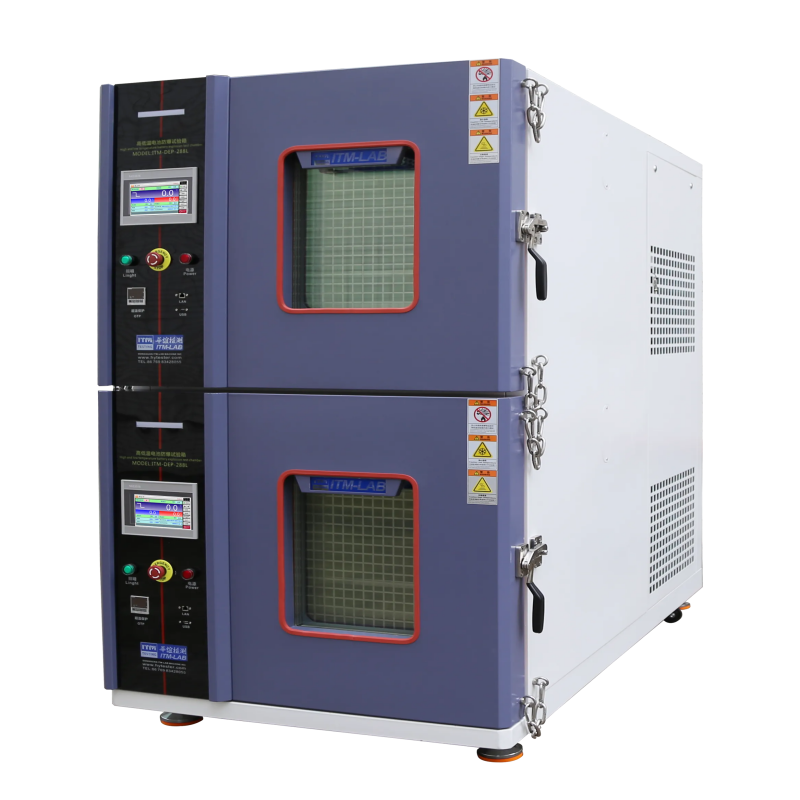

Double-layer high and low temperature explosion-proof test chamber ITM-DEP-288L Double-layer high and low temperature explosion-proof test chamber ITM-DEP-288L

Double-layer high and low temperature explosion-proof test chamber ITM-DEP-288L

It is suitable for high and low temperature testing of batteries, batteries, electronic products and other products, parts and various materials.
Model: ITM-DEP-288L
Temperature range: A: -20°C to +150°C, B: -40°C to +150°C, C: -70°C to +150°C
Temperature accuracy: ±0.5℃
Temperature uniformity: ≤±2℃
Heating time: Average 1~3°C/minute(non-linear no-load)
Cooling time: Average1.0°C/min Full rang （non-linear no-load)
Inner box size mm: W800xD600xH600
Outer box size mm: 1000x1800x2000
Inner box material: SUS304#mirror stainless steel plate
Outer box material: High-strength cold rail steel plate double-sided electrostatic powder spraying paint
Moisturizing material: Rigid styrofoam + glass fiber
Refrigeration system: French Taikang fully enclosed piston compressor
Weight: about 300kg
Power supply: AC380V 5.5KW

GET A QUOTE

Product Description

Двухслойная испытательная камера повышенной и низкой температуры ITM-DEP-288L
It is suitable for high-temperature testing of batteries, accumulators, electronic products and other products, parts and various materials. The equipment can simulate quality and reliability testing of products, parts

Specifications



Model ITM-DEP-288L
Temperature range A: -20°C to +150°C, B: -40°C to +150°C, C: -70°C to +150°C
Temperature accuracy ±0.5℃
Temperature uniformity ≤±2℃
Heating time Average 1~3°C/minute(non-linear no-load)
Cooling time Average1.0°C/min Full rang （non-linear no-load)
Inner box size mm W800xD600xH600
Outer box size mm 1000x1800x2000
Inner box material SUS304#mirror stainless steel plate
Outer box material High-strength cold rail steel plate double-sided electrostatic powder spraying paint
Moisturizing material Rigid styrofoam + glass fiber
Refrigeration system French Taikang fully enclosed piston compressor
Standard setting 1 observation window, 1 test hole 50mm (located on the left), 2 layers of sample rack, 1 lighting lamp in the box, 1 water supply tank, 1 yarn bag, 1 power cord
Weight about 300kg
Power supply AC380V 5.5KW
