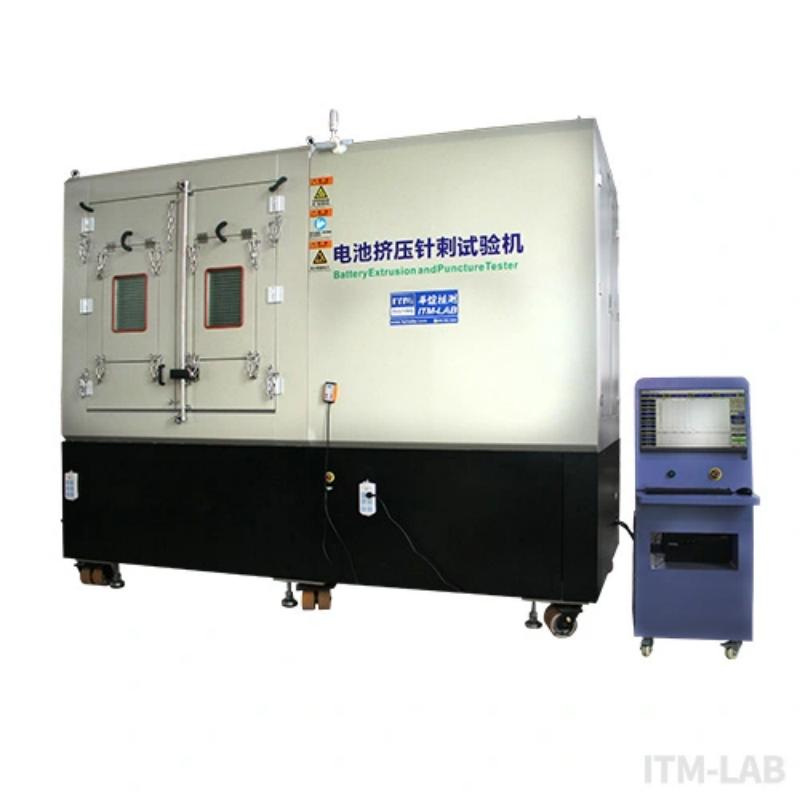

Battery Acupuncture Extrusion Test Chamber RS-6006GW

Application
This Battery Test Equipment is used for the acupuncture/extrusion test of the battery/battery pack, simulates the detection of locat themal runaway of internal short circuit that may be caused by the extrusion force or foreign object penetration of the battery product.

GET A QUOTE

Specification

Model RS-6006GW
Maximum test force 150KN
Scope of test force 0.4%~100%FS
Force value resolution 0.0001KN
Force accuracy ≤±0.5%FS
Acupuncture extrusion stroke 0~400mm
Stroke resoultion 0.001mm
Stroke accuracy ±0.5%
Acupuncture extrusion speed 0.01~80mm/s
Speed accuracy ±0.5% at ≥mm/s, ±1% at ＜1mm/s
Speed resolution 0.001mm/s
Needle head specifications Needle thorn fixture: Adjustable steel needle fixture, meet the steel needle specification φ1~φ10
Temperature range -20℃~+80℃
Temperature collection

Scope of collection: 0~1300℃,

Resolution: 0.1℃,

Accuracy of collection: ±1℃ or 0.5%FS,

Collection channel: K-type thermocouple 8 channels
High-speed video The equipment has a high-speed video test synchronous output interface
External dimension 4055x1965x2005mm
Power AC 380V
