model |

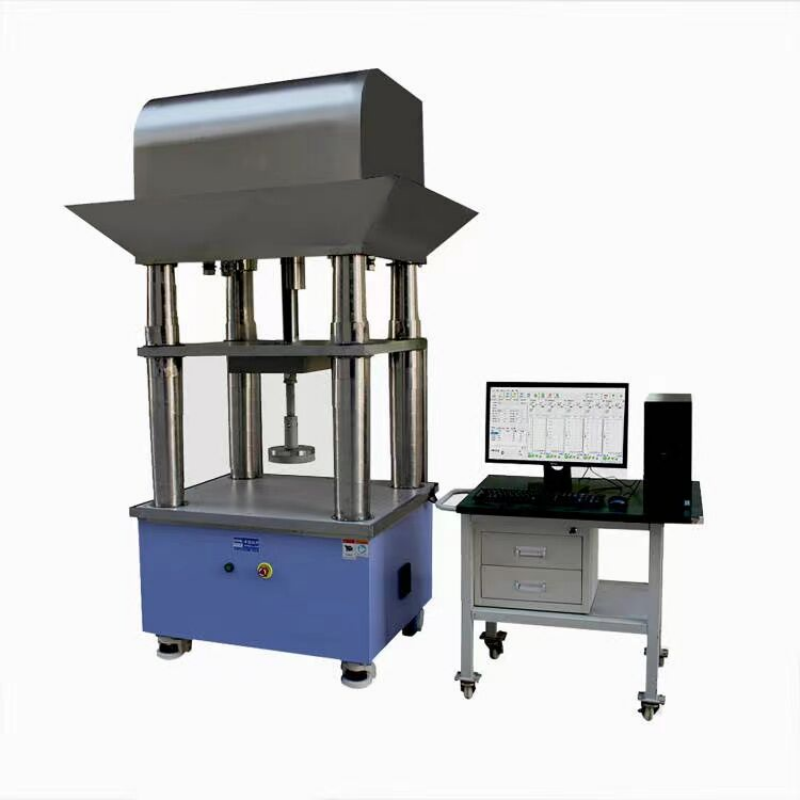

RS-8000A2 |
|
Test capacity |
10 kN, 20 kN, 50 kN (optional) |
|
Equipment precision |
Level 0.5 |
|
Force value range |
0.1~100%(capacity) |
|
Force value accuracy |
≤±0.5%FS |
|
Displacement range |
0~350mm |
|
Displacement resolution |
0.001mm |
|
Displacement accuracy |
≤±0.5% |
|
Spin test speed |
0.01-80 mm/s (continuously adjustable) |
|
Squeeze test speed |
0.01-30 mm/s (continuously adjustable) |
|
Speed resolution |
0.001mm/s |
|
Speed control accuracy |
≤±0.5% |
|
Squeeze fixtures |
A, circular extrusion head: diameter 200mm, thickness 20mm; B. Rectangular extrusion head: 200 * 400mm, 20mm thickness; C. Ball extrusion head: diameter 15 / 20 / 25 / 30mm, length 90mm; diameter 150 / 180mm, length 300mm; D, R-type extrusion head: radius R75mm, width 300mm, length 300mm; Material is made of 304 # stainless steel |
|
draw point |
ø 1, ø 3, ø 5, ø 6, ø 8mm, taper 30,45,60 tungsten steel needle |
|
Voltage collection channel |
A. Acquisition channel: 3 channels; B, Voltage acquisition range: 0~10V And c. Voltage resolution: 0.1 mV D, voltage accuracy: ± 0.069% |
|
Temperature collection channel |
A. Acquisition channel: 10 channel; B. Temperature acquisition range: 0~1000℃ C., Temperature resolution: 0.1℃ D, Temperature accuracy: ± 2℃ E, replaceable thermocouple, quick replacement |
|
Frequency of data acquisition |
1000Hz |
|
Test return speed |
1~80mm/s |
|
Downtime method |
Force value, deformation, voltage, temperature, temperature rise rate, can be arbitrarily combination |
|
safe guarding |
Mechanical limit, force value overload protection, emergency stop switch |
|
source |
AC220V 50Hz |
|
Emergency-stop response time Emergency stop time |
100ms |
