The machine is applicable for various connectors cable to be as tests between of various keep force tests or destructive tests, which is able to get completely accurate results of insertion forces. The local machine adopts windows procedure setting, which is easy and simple to handle, can store the testing data automatically(loading-routes curve, and the test results), and besides, all the test conditions can be stored. It adopts load cell measurement of high precision and servo motor drives, so it is able to get precise tension force results. In fact, it is a kind of necessary detecting instrument for connector and cable manufacturer and various finished products manufacturers to develop and check products.

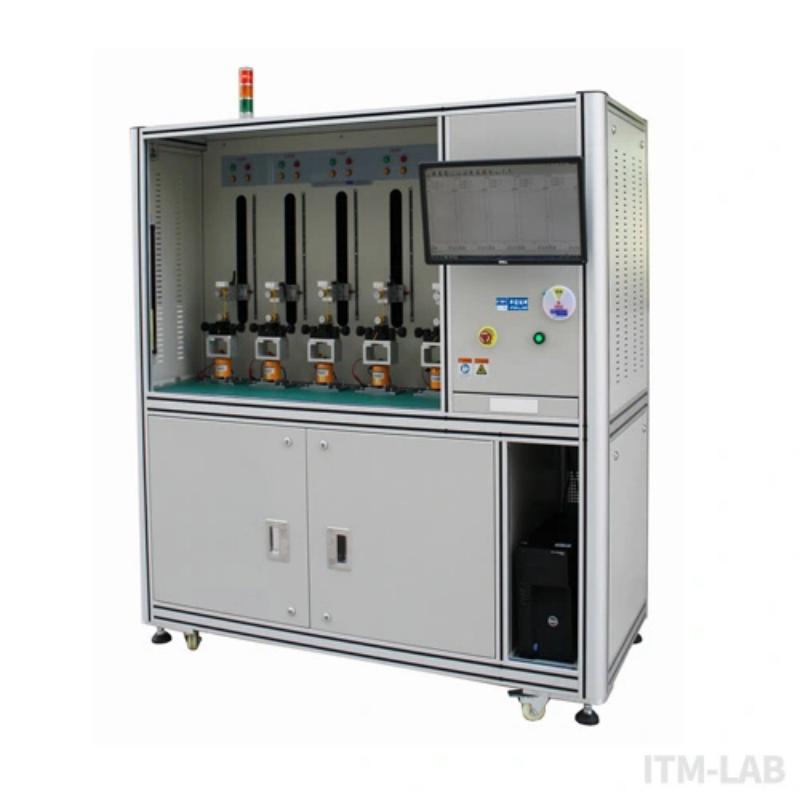

| Model | RS-8000-5 |
|---|---|
| Test station | 5 stations |
| Capacity | 20kgf, each station(Design maximum load 100kgf) |
| Unit | kgf, N, Lb, gf |
| Load accuracy | ±0.2% |
| Load least display | 0.01kgf or 0.01gf |
| Test stroke | 0~300mm |
| Stroke least display | 0.001mm |
| Effective width | 250mm |
| Test speed | 0~600mm/min |
| Speed accuracy | ±0.5% |
| Motor | AC servo motor |
| Main Unit Dimension | W1550xD800xH1850mm |
| Main Unit Weight | 350kg |
| Computer & monitor weight | 13kg |
| Power | AC 220V 8A |
| Emergency stop time | 100ms |
