Cable Testing Machine

Bending testing machine Bending testing machine

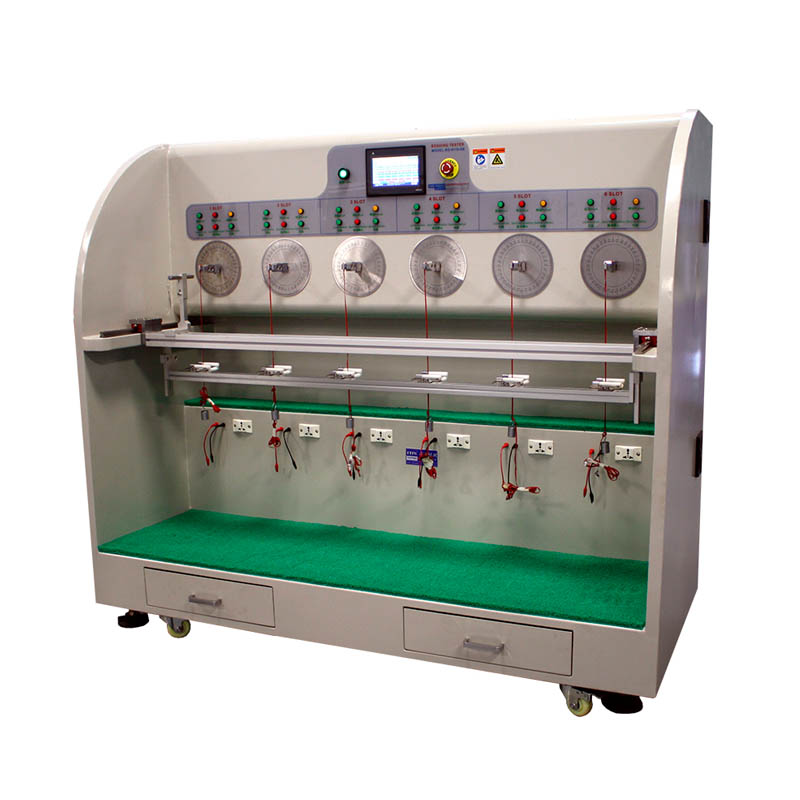

Bending testing machine RS-8116-6D

Suitable for bending testing for headphone cables, USB cables, multi-core cables, communication cables, flat cables, signal cables. The test method consists of mounting the motor vertically, fixing one end of the wire on the rotating device of the motor and suspending the weight (load) at the other end to rotate left and right in order to evaluate the quality of the wire after N flotation tests.
Delivery Terms: EXW, FOB, CIF
Min. Order: 1 Set
Supply Ability: 500 Sets/Month
Completion time: 30 days

GET A QUOTE

PRODUCT APPLICATION

Suitable for bending testing for headphone cables, USB cables, multi-core cables, communication cables, flat cables, signal cables. The test method consists of mounting the motor vertically, fixing one end of the wire on the rotating device of the motor and suspending the weight (load) at the other end to rotate left and right in order to evaluate the quality of the wire after N flotation tests.

PRODUCT PARAMETERS


model RS-8116-6B
Control System Japanese OMRON® touch screen + MITSUBISHI® PLC, each station operates independently
Continuity test Each station can arbitrarily set 0-15 core circuit break detection
drive 6 Japanese Panasonic® AC servo motors

slow down 6 Japan Shimpo® planetary reducers
Test speed 1~60rpm±0.5rpm
Test angle range and fixture requirements 0～±1800, unlimited rotation angle of concentric fixture; cone test fixture (optional), 45 degree twist test fixture (optional), 6 sets of 180 degree bending test clamps, chamfered corners R0/R1/R2/R3/R4/R5/R6 at the end of the clamping line of the clamp,
Minimum display angle 0.1 0
Test cable length 75mm
Test times range 1-9999999  раз
Turning dwell time 0——99.9sec
Weights 500g, 1000g, 6 each
Host size W1820xD820xH1620mm
Total Weight About 450kg
power supply AC220V 50Hz 5A
