Cable Testing Machine

Taper testing machine Taper testing machine

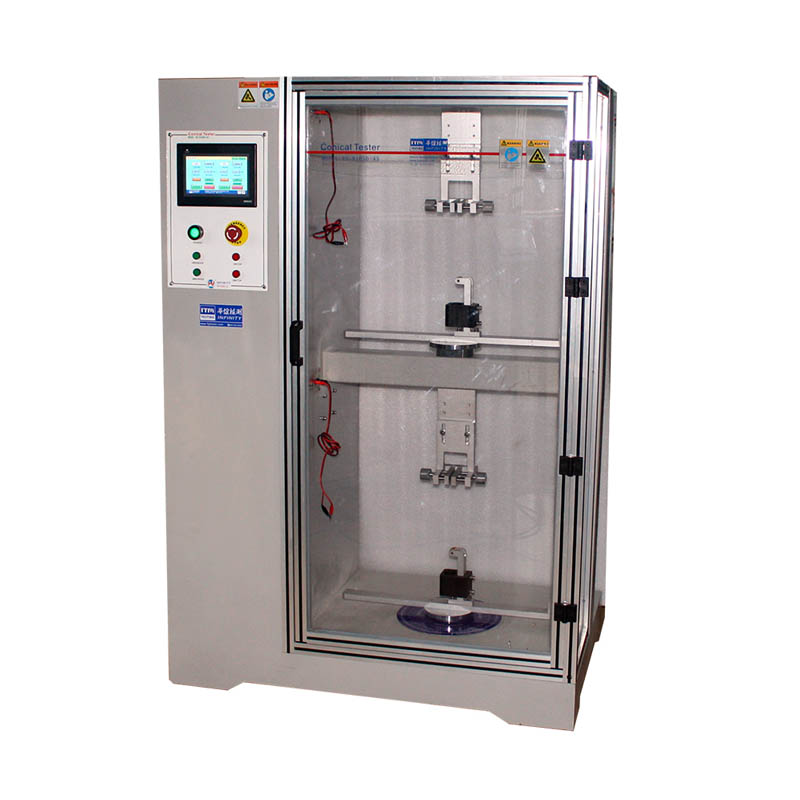

Taper testing machine RS-8105D-45°

This instrument is designed to test the life cycle of power cables, headphones, and new data cables for mobile phones, e-readers, tablets, e-dictionaries, laptops, and headband headphones that can rotate at a 45-degree angle.
Delivery Terms: EXW, FOB, CIF
Min. Order: 1 Set
Supply Ability: 500 Sets/Month
Completion time: 30 days

GET A QUOTE

PRODUCT APPLICATION


This instrument is designed to test the life cycle of power cables, headphones, and new data cables for mobile phones, e-readers, tablets, e-dictionaries, laptops, and headband headphones that can rotate at a 45-degree angle.

PRODUCT PARAMETERS


model RS-8 105D-45 °
Test station S 2Slots (up, down)
Test rotation radius 280mm
Test speed 30-60rpm adjustable (usually 42rpm)
Test Angle 0~±720°
Test load According to customer test requirements, within 500g
Machine size W1030×D650×H1500mm
Machine weight 155 kg
power supply 1 ∮  AC220V  5 A
