High and low temperature test chamber GDW Series High and low temperature test chamber GDW Series

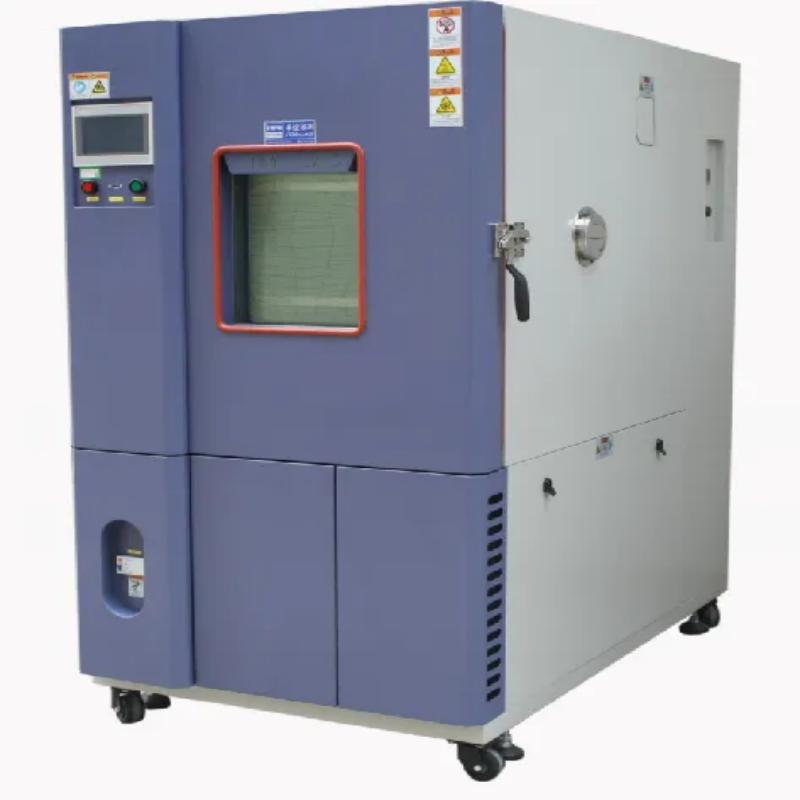

High and low temperature test chamber GDW Series

High and low temperature test chamber applying to electrical engineering, electronic products, components and the adaptive test of materials during storage, transportation and use in high and low temperature.

GET A QUOTE

GB10592-89, GB10589-89, GB2423.2-89, GB/T5170.2-96

Model GDW-100L GDW-150L GDW-225L GDW-408L GDW-800L GDW-1000L
Temp.-range A: -20℃~+150℃; B: -40℃~+150℃; C: -70℃~+150℃;
Temp.-accuracy ±0.5 ℃
Temp.-uniform ±0.5 ℃
Time for heating up 35 min for +20℃ ~ +100 ℃;45 min for -40℃ ~ +100 ℃;
60 min for -70℃ ~ +100 ℃;
Time for cooling down 40 min for +20℃ ~ -20℃; 55 min for +20℃ ~ -40℃;
90 min for +20℃ ~ -70℃;
Interior Dim. 400*500*500 500*600*500 500*750*600 600*850*800 1000*1000*800 1000*1000*1000
(W*H*D)mm
Exterior Dim. 1000*1450*1050 1000*1500*1100 1000*1650*1200 1100*1750*1400 1500*1900*1400 1500*1900*1600
(W*H*D)mm
Interior Material Stainless steel SUS304 (Mirror)
Exterior Material High strength cold-rolled plate by electrostatic spray with two-sided.
Cooling System France Tecumseh whole sealing piston compressor
Weight 220 Kg 250 Kg 300 Kg 400 Kg 600 Kg 700 Kg
Power AC 220 V 3KW or specified AC 220 V 4KW or specified AC 380 V 5.5KW or specified AC 380 V 7.5KW or specified AC 380 V 10KW or specified
