Temperature and Humidity Chamber

temperature and humidity test chamber temperature and humidity test chamber

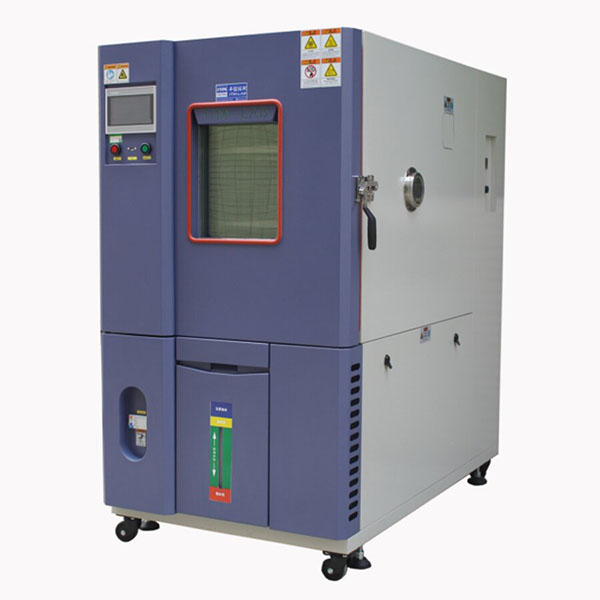

Programmable Constant Temperature & Humidity Tester GDJS-100L/150L/225L/408L/800L/100L

The temperature and humidity test chamber can simulate the test of the product under the combined conditions of temperature and humidity in the general climate environment (high and low temperature operation & storage, temperature cycle, high temperature and high humidity, dew test) to detect whether the adaptation ability and characteristics of the product itself are changed, but also can target the product at low temperature and low humidity, high temperature and low humidity, high temperature and high humidity to low temperature and low humidity.. Whether cracking and damage will occur in the environment, and in the low humidity environment, the static energy of the air is several times that of the general environment. It is reported that most of the damage of electronic parts is caused by static electricity.

GET A QUOTE

PRODUCT APPLICATION


This equipment is designed to perform reliable high and low temperature tests, constant and gradual temperature changes, humidity tests, and other environmental simulation media for a variety of electrical and electronic products, as well as other products, components, and materials.
Any other use may result in injury and damage to the equipment!

PRODUCT PARAMETERS


Product Name Temperature and humidity test chamber
model GDJS-408L -B
Sample Restrictions A) Testing and storage of samples of flammable, explosive and volatile substances
B) Testing and storage of samples of corrosive substances Testing or storage of biological samples
C) Testing and storage of samples of strong electromagnetic radiation sources
Effective volume 408L
Inner box size W(width)600 mm*H(height)850 mm*D(depth)800 mm
Test box outer box size W(width)850mm*H(height)2020mm*D(depth)1700mm
Conditions Refers to air-cooled environment with a temperature of +5°C to +25°C. Relative humidity ≤85%. No load (when there is no sample in the test chamber).
Temperature/humidity range -40℃ to +150℃/humidity control range 20% to 98%RH (limited temperature range, see zoning diagram)
Temperature fluctuation ±0.5 ℃
Temperature deviation ± 1 ℃
Temperature deviation ±3%
Temperature uniformity ≤2.0℃ (-40~+150℃ range)
Heating rate ≤3.0℃/min, average nonlinearity over the entire process, no-load
Cooling rate ≤1.0℃/min, average nonlinearity over the entire process, no-load
Temperature Overshoot ≤± 2 ℃
Maximum load Box load-bearing capacity: 50kg
Constant maximum heating load The sample heat generation is: 300W. (The load heat generation is 100W below -30℃)
Noise ≤75dB (A sound level)
