PRODUCT APPLICATION
This equipment applies to high-temperature hypothermic moisture testing, LEDs, PCB, etc., as well as product aging testing in various electronic hypothermia purification devices: 3C/10%RH; 2, 5 s /10%RH equivalent of built-in drawer, with moderate humidity temperature and transferable lab floor: 600kg/m2(uniform load), made of fully welded SU304 stainless steel.
PRODUCT PARAMETERS

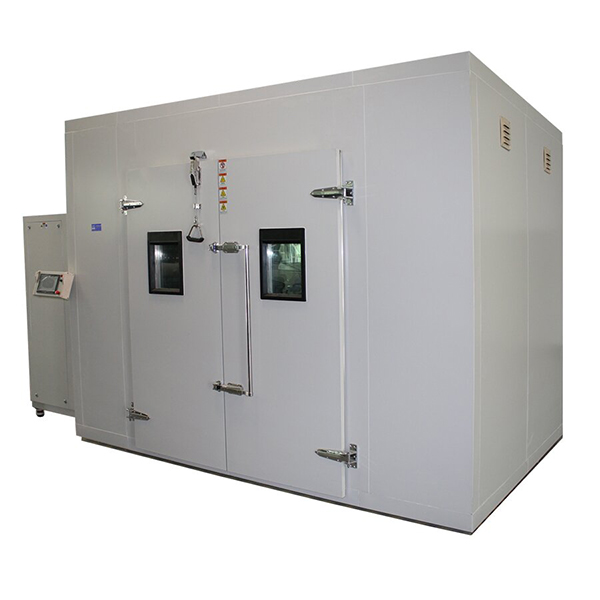

| model | BRS-45M³-A |
| Scope of application | A) This equipment is suitable for various electrical and electronic products and other products, parts and materials to conduct environmental simulation reliability tests such as high and low temperature constant and gradual changes, damp heat tests, etc. B) Any use other than this may cause personal injury and damage to equipment! |
| Sample Restrictions | A) Testing and storage of samples of flammable, explosive and volatile substances B) Testing and storage of samples of corrosive substances Testing or storage of biological samples C) Testing and storage of samples of strong electromagnetic radiation sources |
| Effective volume | 45M³ |
| Environmental chamber inner box size | W(width)3300 mm*H(height)3000 mm*D(depth)4500 mm |
| Environmental chamber outer box size | W(width)4900mm*H(height)3380mm*D(depth)5100mm (subject to the actual product) |
| condition | Refers to air-cooled environment with a temperature of +5°C to +25°C. Relative humidity ≤85%. No load (when there is no sample in the test chamber). |
| Temperature/humidity range | 0℃ to +90℃/humidity control range 20% to 98%RH (limited temperature range, see zoning diagram) |
| Temperature/humidity fluctuation | ±1℃ / ±2.5%RH |
| Temperature/humidity deviation | ≤±2℃ / A)>75%RH:≤+2,-3%RH，B)<75%RH:≤±5%RH。 |
| Temperature uniformity | ≤±2.0℃; |
| Heating rate | ≤2℃/min, average nonlinearity over the whole process, no-load |
| Cooling rate | ≤1℃/min, average nonlinearity over the entire process, no-load |
| Temperature rise and fall overshoot | ≤2℃ |
| Maximum load | The floor surface is anti-skid plate. Load bearing: 2000KG/m² |
| Track trolley | Equipped with a rail trolley to transport the motor in and out of the box |
| noise | ≤75dB (1 meter away from the unit) |
