Purpose:

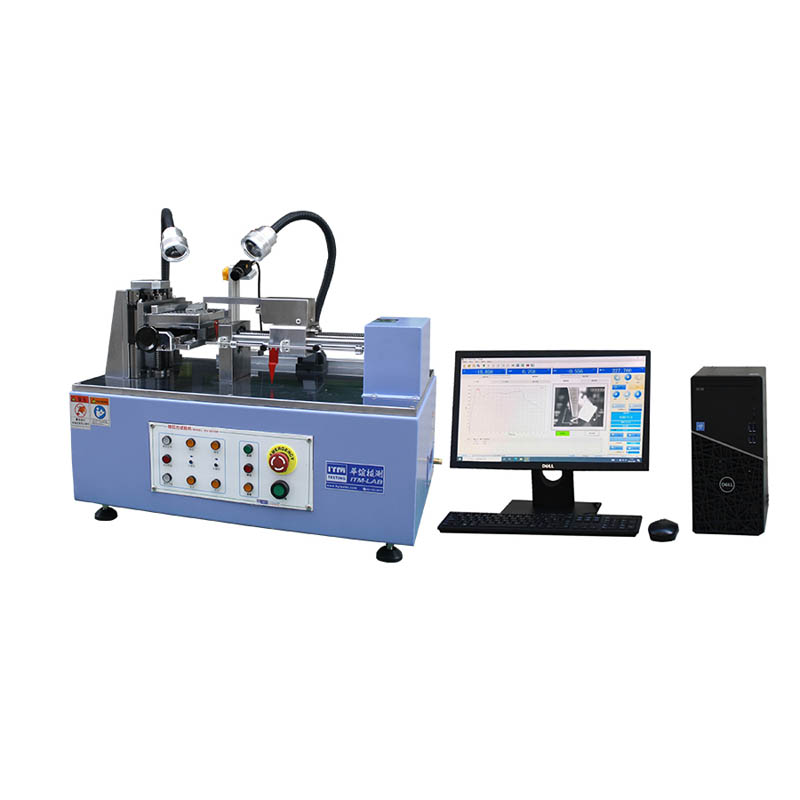

Computer control style RS-8010：( It is used for laboratory precise test, can do many data analyse and printing special sports),
special control style RS-8010A ( It is used for materials to do retentiveness test ect).
Typical applications:
Rubber tape peeling test at 90 / 180 °
Rubber / plastic tensile test
Plastic bending test
Wire / sheet tensile / bending test
Fabric tearing test
Drink package compression / bursting test
Applications:
Rubber tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal, paper, plastic, textile, wood, communication.
Specification:
180°、90°Tape adhesion roller：
The tape adhesion roller is to assist to prepare the testing sample.
Features:
High accuracy:Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
High performance:Automatic breaking identification, automatically return, units are selectable.
Multi-function:Can coordinate with different grips, the testing of tensile, compression, bending, shearing, tearing, peeling, etc can be done.
Software control：
Testing report：
The testing report can be edited by operator, and can convert to PDF file, EXCEL file and can be printed. The report will be english only if the machine sent to the countries where has no need to use Chinese.
Computer control style RS-8010：( It is used for laboratory precise test, can do many data analyse and printing special sports),
special control style RS-8010A ( It is used for materials to do retentiveness test ect).
Typical applications:
Rubber tape peeling test at 90 / 180 °
Rubber / plastic tensile test
Plastic bending test
Wire / sheet tensile / bending test
Fabric tearing test
Drink package compression / bursting test
Applications:
Rubber tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal, paper, plastic, textile, wood, communication.
Specification:
| Model | RS-8010 | RS-8010A | |
| Purpose | Test room for precision test, control by computer |
Used for material repeated test & retention test |
|
| Capacity (optional) | 50N,100N,200N,500N,200N, 1KN, 2KN, 5KN | ||
| Unit (switchable) | N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/MM2 | ||
| Load resolution | 1/500,000 | ||
| Load accuracy | ±0.25% | ||
| Stroke (exclude the grips) | 650mm or 1000mm (optional) | ||
| Effective width | 130mm | ||
| Test speed | 0.001~500mm/min | ||
| Load range | rangless | ||
| Speed accuracy | ±0.5% | ||
| Stroke resolution | 0.001mm | ||
| Motor | AC servo Motor | ||
| Software | Standard software | Standard Software | |
| Transmission rod | High accuracy ball screw | ||
| Main unit dimension (WxDxH) |
500x600x1280mm(stroke at 650mm) or 500x600x1550mm(stroke at 1000mm) |
||
| Main unit weight | About 140Kg | ||
| Power supply | AC220V 10A or specified by user | ||
180°、90°Tape adhesion roller：
The tape adhesion roller is to assist to prepare the testing sample.
Features:
High accuracy:Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
High performance:Automatic breaking identification, automatically return, units are selectable.
Multi-function:Can coordinate with different grips, the testing of tensile, compression, bending, shearing, tearing, peeling, etc can be done.
Software control：
Testing report：
The testing report can be edited by operator, and can convert to PDF file, EXCEL file and can be printed. The report will be english only if the machine sent to the countries where has no need to use Chinese.
