PRODUCT APPLICATION
Typical Application:
Tensile test
Compression Test
Shear Strength Test
Product Preservation Test (Constant Force)
Low Frequency Fatigue Test (Cyclic)
Clutch test
Applications:
Plastic, Rubber, Metal, Automotive, Ceramics, Composite Materials, Construction, Tapes, Food, Medical Equipment, Paper, Textile, Wood, Communications
PRODUCT PARAMETERS

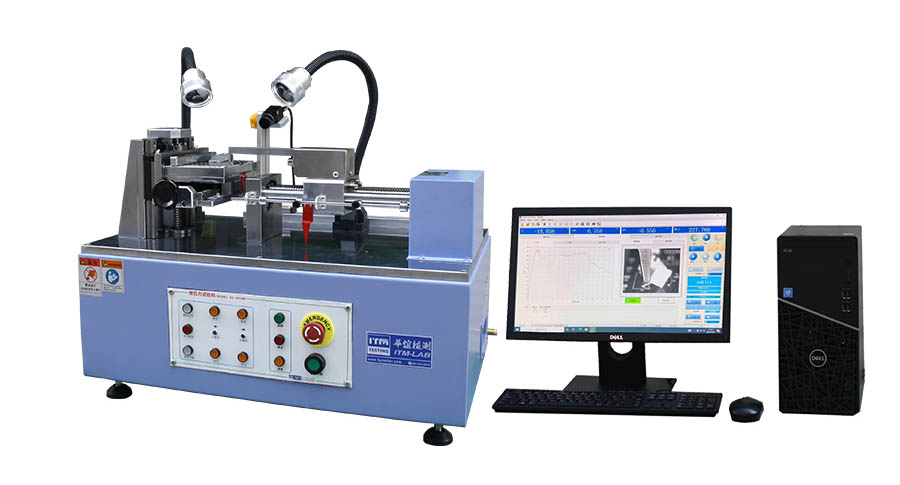

| model | RS-8010W |
| Maximum load | 5 000N |
| Reporting unit switch | kN, kgf, lbf , N , gf |
| Accuracy | Level 1 |
| Effective force range | 1%~100% |
| Force measurement accuracy | Within 1% of indicated value |
| Testing machine resolution | Maximum load 500,000 codes, no distinction between internal and external files, and constant resolution throughout the process |
| Load Cells | Basic configuration: one tension and compression sensor (maximum load) |
| Extended Configuration | Multiple sensors can be added |
| Test piece space | 120 × 120mm |
| Effective stretching space | 120mm |
| Test speed range | 0.01~500mm/min (Panasonic servo) |
| Speed accuracy | Level 1 |
| Displacement measurement accuracy | Within 1% of indicated value |
| Deformation measurement system | Large deformation: measuring range 100mm (optional) |
| Deformation measurement accuracy | 1%FS |
| Test bench safety device | Mechanical limit, (electronic limit) |
| Test bench lifting device | Fast/slow two speed automatic control, can be controlled by jog |
| Test bench return function | Manual or automatic return, automatic return after break |
| Overload protection | If the maximum load exceeds 10%, the machine will automatically protect itself. |
| Fixture configuration | Basic configuration: XY mobile fixture, push rod fixture |
| Host size | 660×240×410 mm |
| Motor | Japan Panasonic servo motor 0.4KW |
| Host weight | (Approx.) 35kg |
