A universal tensile test machine is a type of equipment used to measure the mechanical properties of materials such as tensile strength, yield strength, and elongation at break. It is widely used in manufacturing, research, and testing laboratories .
Product Purpose
This instrument is designed to perform tensile, compression, bending, tearing, tearing, shearing tests of various materials either using ITM-60C test software to meet the insertion and removal requirements of various connectors, or using ITM-60B test software to meet the load testing requirements of various buttons.
Product Application
Tensile,compression, bending and peeling tests of various materials.
Insertion and extraction force test of connector.
Load curve test of various button.
Insertion and extraction force test of connector.
Load curve test of various button.
Technical Parameters
| model | RS-6001P |
| Machine capacity | 1kN,or 2kN,or 5kN |
| Maximum moving range | 300mm, or 500mm (optional) |
| Displacement resolution | 0.001mm |
| Displacement accuracy | ±0.02mm+0.0001L (L=any length) |
| Force accuracy | ±0.25% |
| Test speed | 0.001~1000mm/min |
| Speed accuracy | ±0.5% |
| Manual speed control | High speed: 500mm/min |
| Medium speed: 50mm/min | |
| Low speed: 5mm/min | |
| Unit Selection | N, mN,kN,kgf，gf，Lbf，mm，cm, in |
| Sampling frequency | 1000 times/sec |
| Control computer | 10.2" touch control computer, Windows 10 operating system, Intel i7 CPU, 8G memory, 512G hard disk |
| Protective function | Upper and lower mechanical travel limit protection, software force overload retention, emergency stop button protection |
| Machine size | 460x400x730mm |
| Machine weight | About 85kg |
| power supply | AC220V 50Hz 400W |
Product Advantage
Intelligent integrated design,10.2 "touch control computer based on Windows 10 system is equipped with Intel i7 CPU, which has extraordinary calculation and processing ability, supports the sampling frequency up to 1000Hz, and the test data curve can be automatically saved.
Desktop design, can greatly save laboratory space, small body, big strength, maximum support 5kN testing.
The displacement resolution is 0.001mm and the accuracy is within±0.02+0.001lmm (L= any length mm). The accuracy of force value is better than±0.25%.
The machine adopts Japan Panasonic servo motor + SHIMPO planetary reducer +THK precision linear guide +THK ball screw are used to optimize key parts to ensure repeated positioning accuracy, high speed, low noise and durable use.

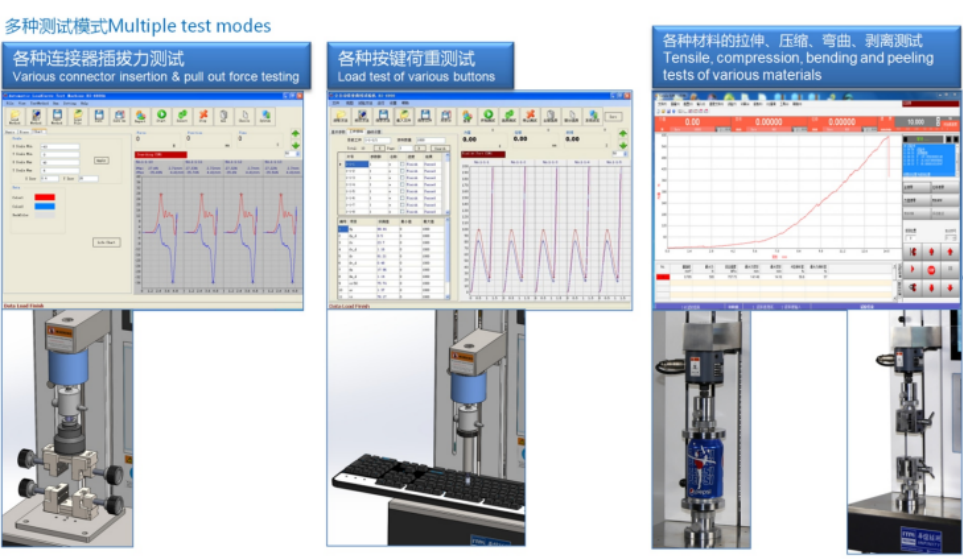

A variety of test modes, such as tensile, compression, bending, stripping and other test software packages, or connector insertion and pull-out force test software package, or key load test software package, specific consulting relevant business personnel.
With multi force channel function, the system adopts Japan NTS precision load cell, and can calibrate 5 sensors of different specifications, which is suitable for more test items.
The interface of Chinese / English test software can be switched, which is applicable to the testing standards of many countries and industries.
When the force value reaches the set zero point, the force value and displacement are automatically cleared. There is no fear of button height and connector length. There is no need for zero displacement detection and deceleration, which can improve the test efficiency.
You can choose computer keyboard and mouse for operation.
Desktop design, can greatly save laboratory space, small body, big strength, maximum support 5kN testing.
The displacement resolution is 0.001mm and the accuracy is within±0.02+0.001lmm (L= any length mm). The accuracy of force value is better than±0.25%.
The machine adopts Japan Panasonic servo motor + SHIMPO planetary reducer +THK precision linear guide +THK ball screw are used to optimize key parts to ensure repeated positioning accuracy, high speed, low noise and durable use.
A variety of test modes, such as tensile, compression, bending, stripping and other test software packages, or connector insertion and pull-out force test software package, or key load test software package, specific consulting relevant business personnel.
With multi force channel function, the system adopts Japan NTS precision load cell, and can calibrate 5 sensors of different specifications, which is suitable for more test items.
The interface of Chinese / English test software can be switched, which is applicable to the testing standards of many countries and industries.
When the force value reaches the set zero point, the force value and displacement are automatically cleared. There is no fear of button height and connector length. There is no need for zero displacement detection and deceleration, which can improve the test efficiency.
You can choose computer keyboard and mouse for operation.
