Mechanical Testing Machine

Fully automatic load testing machine Fully automatic load testing machine

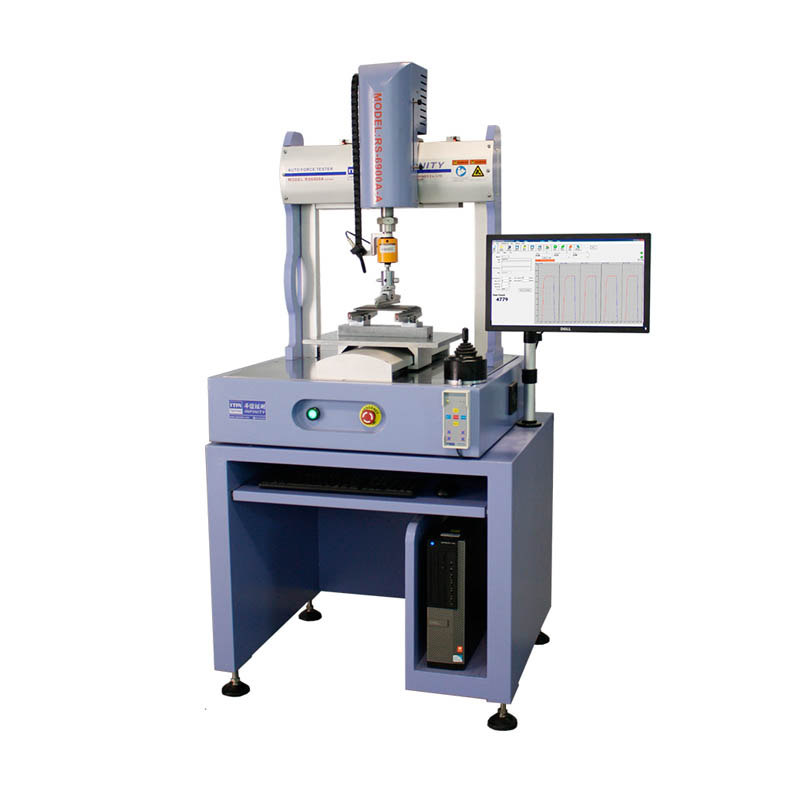

Fully automatic load testing machine XRZ RS-6900A2

Our company has developed and manufactures XYZ fully automatic compression testing machine, which integrates precision mechanics, automatic control, and precision pressure control technology.
Its core consists of a multi-channel motion controller and a measurement and control board on a single microcontroller. This product has powerful features, easy programming, convenient operation, and low price.
Delivery Terms: EXW, FOB, CIF
Min. Order: 1 Set
Supply Ability: 500 Sets/Month
Completion time: 30 days

GET A QUOTE

PRODUCT APPLICATION

Our company has developed and manufactures XRZ fully automatic compression testing machine, which integrates precise mechanics, automatic control, and precision pressure control technology. Its core consists of a multi-channel motion controller and a measurement and control board on a single microcontroller. This product has powerful features, easy programming, convenient operation, and low price. It can meet the requirements of multi-point/single-point holding force testing for products such as glass, touch screen modules, smartphones, tablets, ноутбуки, электронные книги, электронные словари и т. д., а также тестирование на трехточечное изгибание\четырехточечное bending. This product allows the working platform to move along a preset path by motion controller, motor and motion platform, the software automatically collects [load-displacement] data all the way, automatically plots the curve, automatically saves the test data, and automatically detects PASSED or FAIL.

PRODUCT PARAMETERS


Maximum load on Z axis 50Kg or 100Kg
Z-axis drive mode Japan Panasonic servo motor
Control method Rise and fall
Driving (lifting) range 0~ 150mm
Load measurement range 0~500N(50kgf)or 1KN
Load resolution 0.01 gf
Load accuracy ±0.2%FS of displayed value (10%~100% of the maximum range)
Z axis lifting range 0~150mm
Displacement resolution 0.001mm
Displacement accuracy ± 0.0 3 mm
Z axis test speed range 0.1~500mm/min
XY axis drive mode Japan Panasonic servo motor
Control method X: Left and right Y: Front and back
Drive range X:0~300mm Y:0~300mm
Displacement resolution 0.002 mm
Displacement accuracy ± 0.05mm
Moving speed range 0.1~200mm/sec
Allowable sample size 300x260x100mm
Machine weight (approx.) 425kg
Machine size 860x755x780mm
power supply AC220V 50Hz 10A
