Servo controlled fully automatic plug-in force testing machine Servo controlled fully automatic plug-in force testing machine

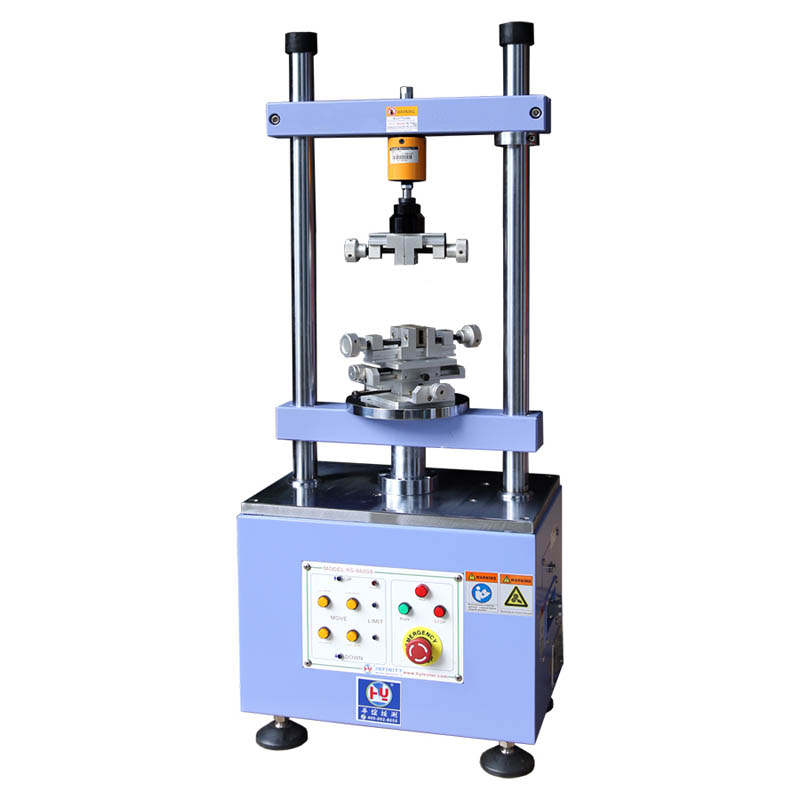

Servo controlled fully automatic plug-in force testing machine RS-6600A

This instrument is designed to perform insertion and extraction force tests Fully automatic control of the RS-6600A servo drive, various connectors. Equipped with an automatic centering device and special latches for various connectors, it provides fully accurate insertion and removal results.
Delivery Terms: EXW, FOB, CIF
Min. Order: 1 Set
Supply Ability: 500 Sets/Month
Completion time: 30 days

GET A QUOTE

Products Show




This instrument is designed to perform insertion and extraction force tests on a variety of connectors. Equipped with an automatic centering device and special latches for various connectors, it provides fully accurate insertion and removal results.
Servo controlled fully automatic plug-in force testing machine

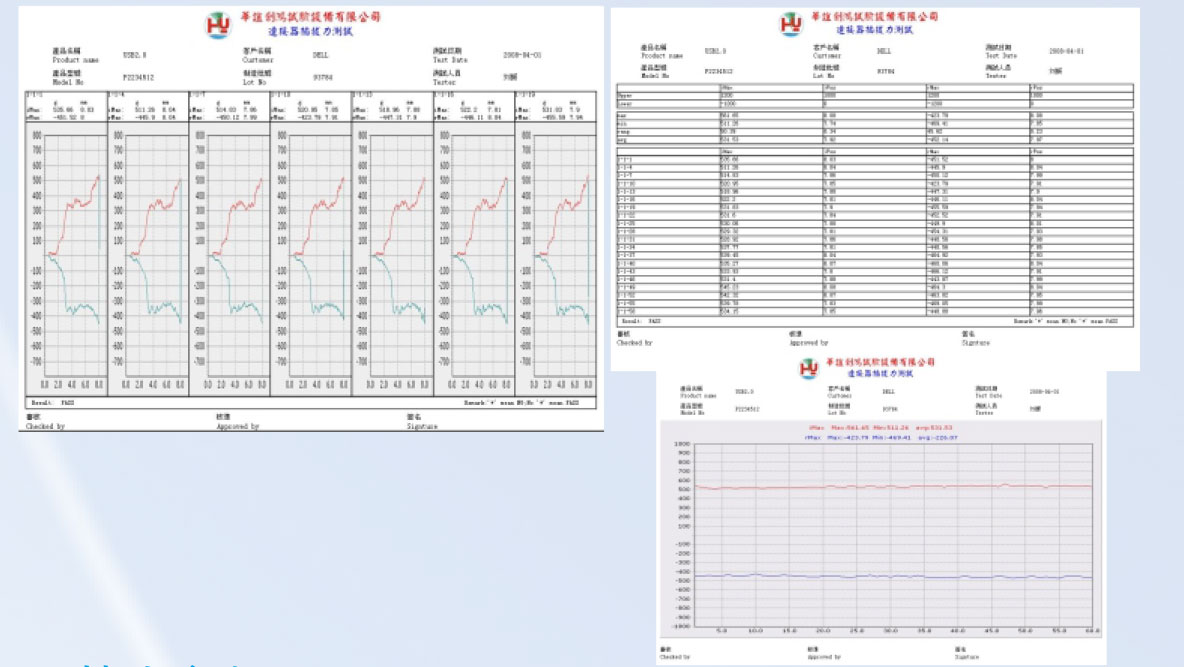

Test Report

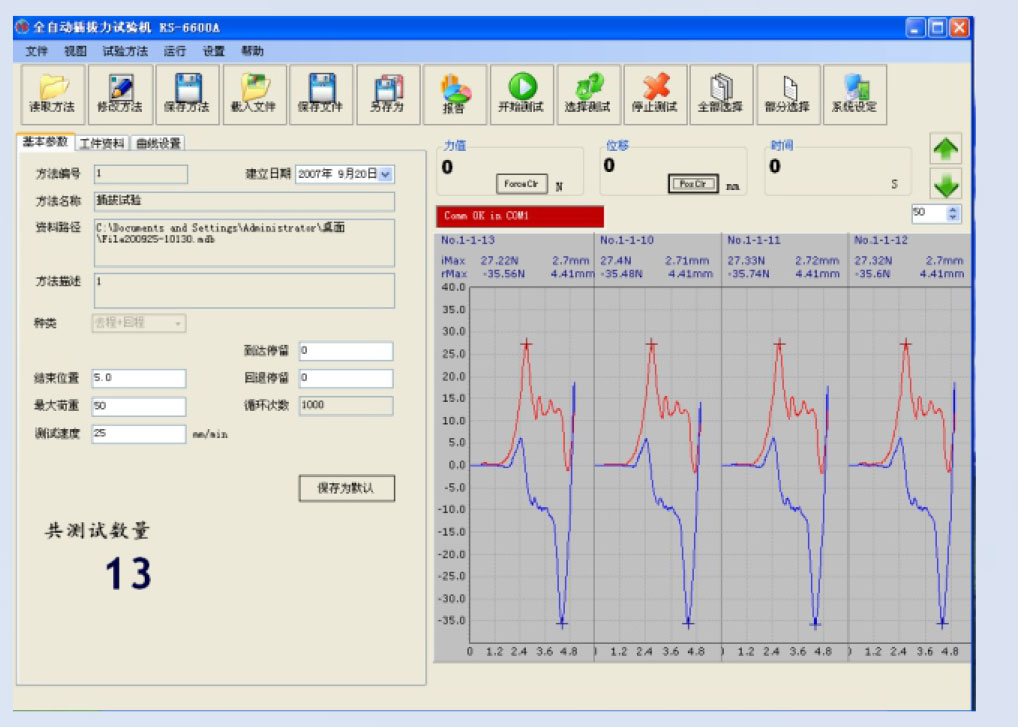

Test Software



Technical Parameters



model RS-6600A
Capacity selection 5kgf,10kgf,20kgf,50kgf,100kgf
Unit Switching kgf, N, Lb, gf
Load accuracy ±0.2%
Minimum display 0.01kgf or 0.01gf
Test trip 0~150mm
Minimum displacement display 0.001mm
Effective width 290mm
Test speed 0~ 5 00mm/min
Speed ​​accuracy ±0.5%
motor Japan Panasonic servo motor
Host size 460x270x950mm
Machine weight 70kg
power supply AC220 5A or specified
Emergency stop response time 100ms
