Universal Testing Machine

Servo controlled pull testing machine RS-8000 Servo controlled pull testing machine RS-8000

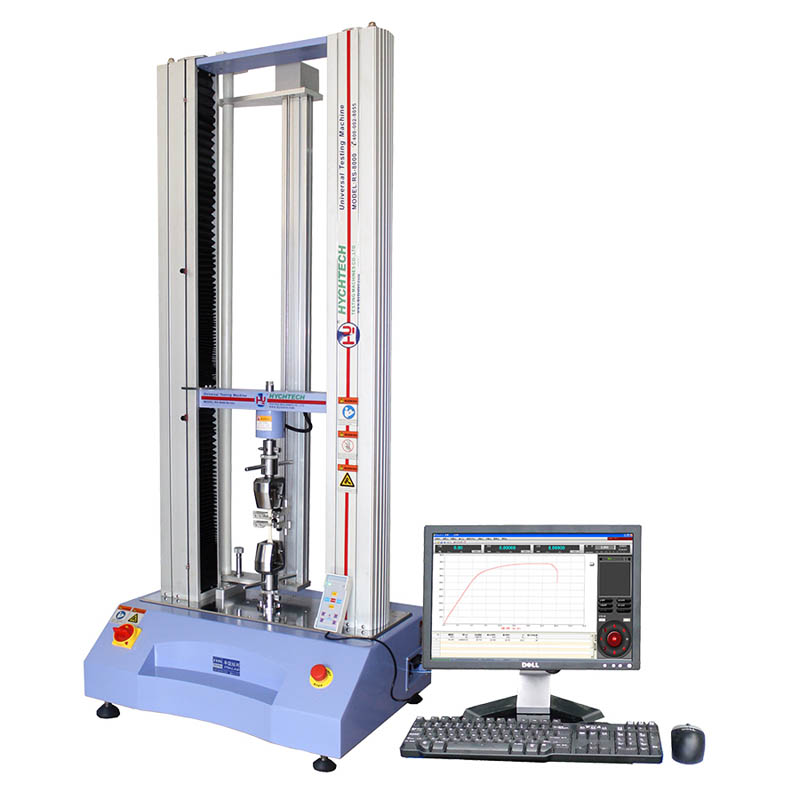

Servo controlled pull testing machine RS-8000

This instrument is designed to perform tensile, compression, bending, tearing, cutting, tearing, crushing, puncture, fatigue and other tests on metal wires, metal foils, metal sheets and metal tapes, rubber, plastics, marine/bubble rubber, waterproof materials, wires and cables, textiles, meshes, nonwovens and other materials, which is an integral tool for improving quality in the industry.
Delivery Terms: EXW, FOB, CIF
Min. Order: 1 Set
Supply Ability: 500 Sets/Month
Completion time: 30 days

GET A QUOTE

PRODUCT APPLICATION

This instrument is designed to perform tensile, compression, bending, tearing, cutting, tearing, crushing, puncture, fatigue and other tests on metal wires, metal foils, metal sheets and metal tapes, rubber, plastics, marine/bubble rubber, waterproof materials, wires and cables, textiles, meshes, nonwovens and other materials, which is an integral tool for improving quality in the industry.
Typical applications:

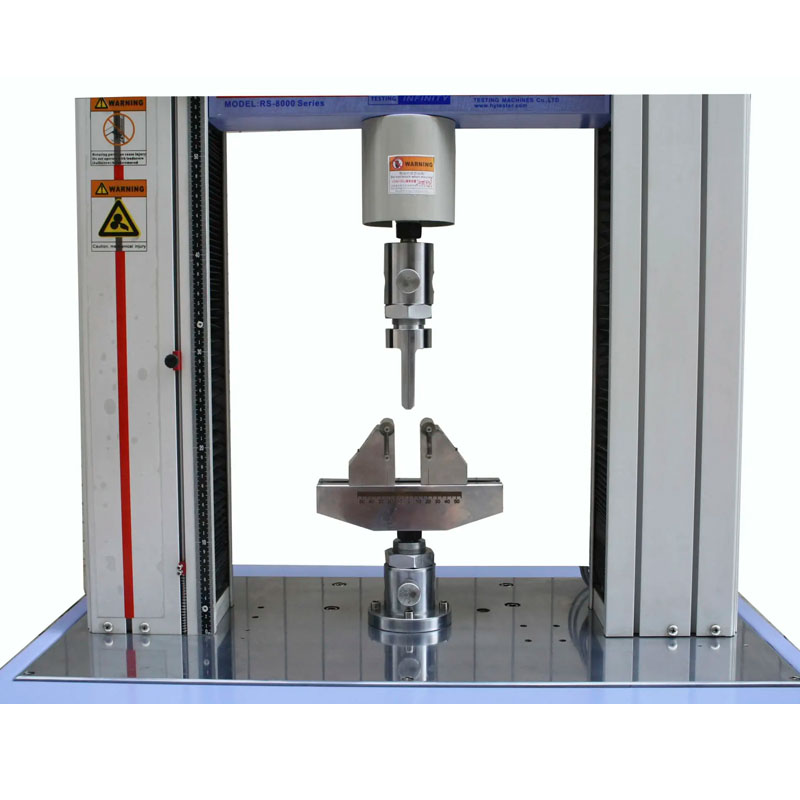

Tensile Tests on Metal/Thin Sheets Tensile Tests on Rubber/Plastics Bending Tests on Metal/Plastics



PRODUCT PARAMETERS


Main Specifications Technical Parameters
capacity 10KN/20KN/50KN optional
level of accuracy Level 0.5
Measuring range 0.4%~100%FS (full range without grade division)
Test force indication accuracy ±0.25%
Test force resolution ±500000 yards
Deformation measurement range 0.2%~100%F•S
Deformation indication accuracy ±0.5%
Deformation Resolution ±500000 yards
Large deformation measurement range (optional) 10~800 mm
Large deformation indication accuracy ±0.5%
Large anamorphic resolution 0.003mm
Displacement indication accuracy ±0.3%
Displacement resolution 0.04μm
Force control rate adjustment range 0.005~10% F•S/s
Force control rate control accuracy When the force control rate is less than 0.05% F•S/s: ±0.5%
When the force control rate is greater than or equal to 0.05% F•S/s: ±0.3%
Elongation rate adjustment range 0.005~10% FS/s
Elongation rate control accuracy When the elongation rate is less than 0.05% F•S/s: ±0.5%
When the elongation rate is greater than or equal to 0.05% F•S/s: ±0.3%
Displacement rate adjustment range 0.001~500mm/min
Displacement rate control accuracy ±0.2%
Constant force, constant deformation, constant displacement control range 0.5%~100%F•S
Constant force, constant deformation, constant displacement control accuracy When the setting value is less than 10% F•S/s: ±1%
When the setting value is greater than or equal to 10% F•S/s: ±0.3%
Effective stretching space 1000mm
Effective test width 400mm
Power supply voltage and power 220V,1000W
Host size 830×670×2340mm
product weight 245KG
