This universal testing machine is manufactured according to GB/T16491-2008, General Technical
Requirements GB2611-2007, Test of Power Measurement System, JB6146-2007, General Specification for JJF1246-2010
Meet the standard test requirements of the Room Temperature Tensile Test Method of Metal
Materials GB / T228-2002 and the Test Method for Flexing Performance of Metal Materials GB /T14452-93
Meet the Plastic Tensile Strength Test Method ASTM D638-03 and the Plastic Bend Strength Test Method ASTM D790-07
Meet / GB / T2792, ASTMD3330-04 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method A-Single-Coated Tapes at 180° Angle)
Standard test requirements such as ASTM D1894-06Standard Test Method for Static and Kinetic

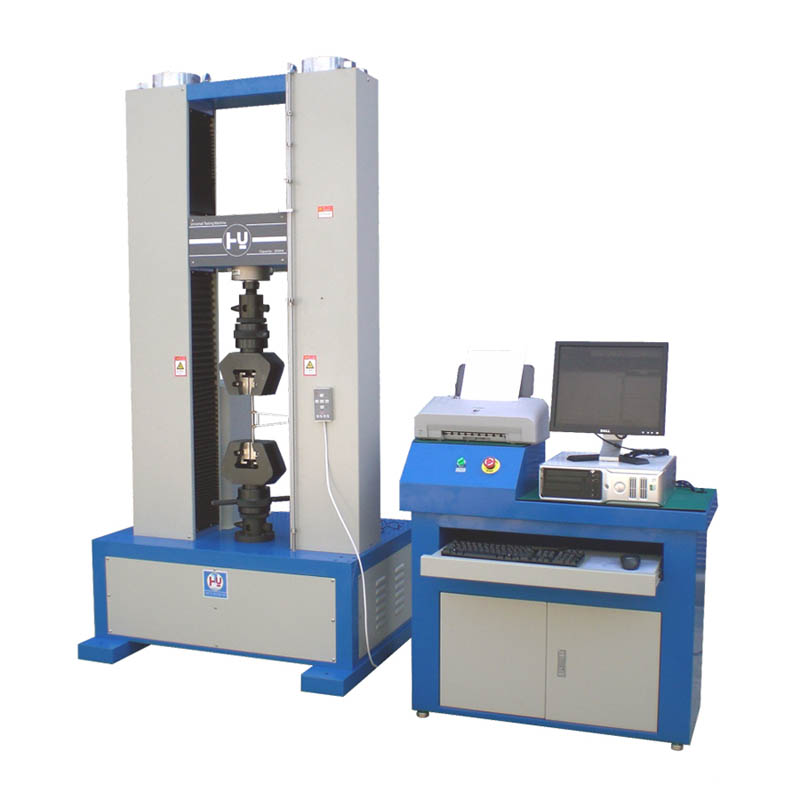

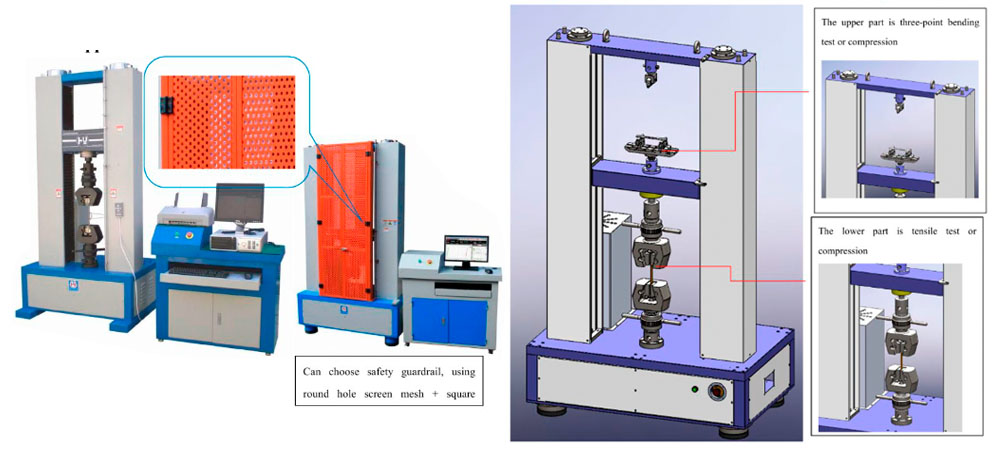

The RS-8000A computer-controlled testing machine can be used to perform tensile, compression, bending, shear and other tests for a maximum load of 100 kN.
High accuracy:
Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell, load accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
High intelligence:
Automatic detection of fracture, automatic return, curve traversal function, free unit switching,3 languages can be switched: simple/traditional Chinese, English. Load-displacement, load-time, displacement-timestress-strain, strain-time, stress-time curve analysis.
Requirements GB2611-2007, Test of Power Measurement System, JB6146-2007, General Specification for JJF1246-2010
Meet the standard test requirements of the Room Temperature Tensile Test Method of Metal
Materials GB / T228-2002 and the Test Method for Flexing Performance of Metal Materials GB /T14452-93
Meet the Plastic Tensile Strength Test Method ASTM D638-03 and the Plastic Bend Strength Test Method ASTM D790-07
Meet / GB / T2792, ASTMD3330-04 Standard Test Method for Peel Adhesion of Pressure-Sensitive Tape (Test Method A-Single-Coated Tapes at 180° Angle)
Standard test requirements such as ASTM D1894-06Standard Test Method for Static and Kinetic
The RS-8000A computer-controlled testing machine can be used to perform tensile, compression, bending, shear and other tests for a maximum load of 100 kN.
High accuracy:
Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell, load accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
High intelligence:
Automatic detection of fracture, automatic return, curve traversal function, free unit switching,3 languages can be switched: simple/traditional Chinese, English. Load-displacement, load-time, displacement-timestress-strain, strain-time, stress-time curve analysis.
Technical Parameters
| Model | RS-8000A |
| Max test force | 100KN/200KN/300KN optional |
| Testing machine level | Level 0.5 |
| Test force measurement range | 0.4%～100%FS |
| Relative error of test force indication | Within ±0.5% |
| Test force resolution | 1/500000FS |
| Relative error of beam displacement indication | Within ±0.50% |
| Displacement resolution | 0.014μm |
| Beam speed adjustment range | 0.001～250 mm/min |
| ОRelative error of beam speed | Within ±0.5% of the setting value / Within ±1% of the setting value |
| Deformation control rate relative error | When the rate is < 0.05%FS, it is within ±2% of the set value; when the rate is ≥ 0.05%FS, it is within ±0.5% of the set value |
| Constant force, constant deformation, constant displacement control accuracy | When the set value is <10%FS, it is within ±1% of the set value; when the set value is ≥10%FS, it is within ±0.5% of the set value |
| Constant force, constant deformation, constant displacement control range | 0.5%--100%FS |
| Effective test width | 600mm |
| Maximum travel of beam (without fixture) | 1000mm(standard model) |
| Maximum travel of beam | 550mm(standard model) |
| Overall width | 1200mm |
| Total Depth | 720mm |
| total height | 2300mm |
| power supply | 220V±10%；5kW |
| Host weight | 1300kg |
