PRODUCT APPLICATION
90°/180° Tape Rubber Peel Strength Test / Plastic Bending Test
Tensile Test of Metal Wire/Thin Sheet, Fabric Tear Test, Compression/Fracture Test of Beverage Packaging
Applications:
Tapes, Automobiles, Ceramic Composites, Construction, Food Processing, Medical Equipment, Metals, Paper, Plastic, Rubber, Textile, Wood, Communication
PRODUCT PARAMETERS

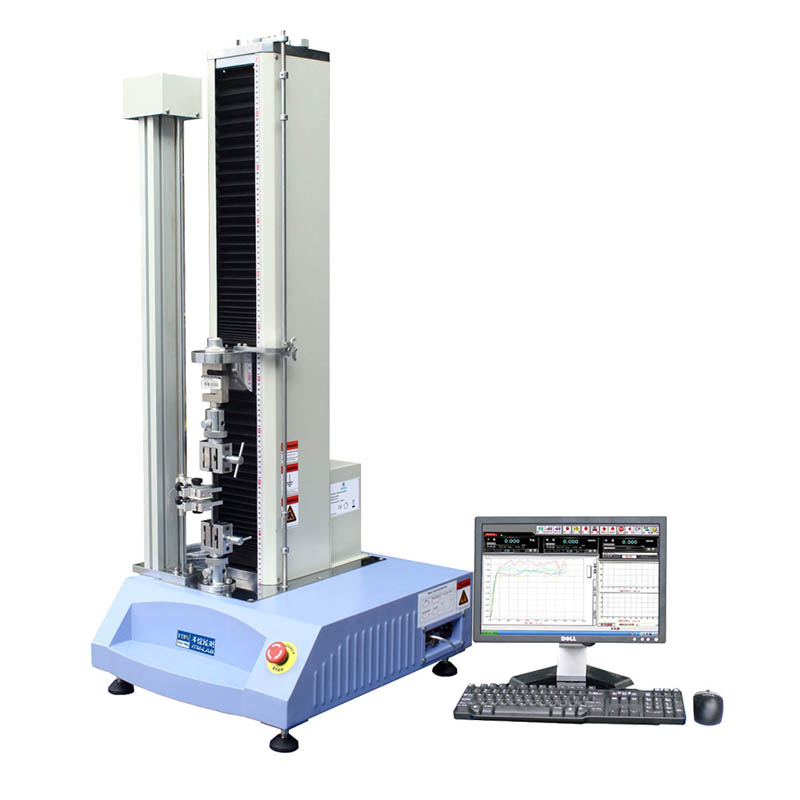

| model | RS-8010 |
| capacity | 50N, 100N, 200N, 500N, 1KN, 2KN, 5KN (optional) |
| Unit Switching | N, KN, Kgf, Lbf, Kpa, MPa |
| Resolution | 1/500000 |
| Load accuracy | ± 0.25%F.S |
| Effective measuring range | 0.25%~100%F.S |
| Effective stretching space | 650mm |
| Effective measuring width | 130mm |
| Test speed range | 0.001~500mm/min |
| Strength Amplification | No segment |
| Deformation measurement (optional) | Large deformation: 10~800mm, small deformation: gauge length 25mm, deformation 10mm |
| Deformation measurement accuracy | Within 1% of indicated value |
| Software and Motor | Closed-loop control software and AC Panasonic servo motor |
| Test bench installation device | Mechanical limit |
| Test bench lifting device | Fast/slow two speed automatic control, can be controlled by jog |
| Test bench return function | Manual or automatic return, automatic return after break |
| Overload protection | If the maximum load exceeds 10%, the machine will automatically protect itself. |
| Host size | 560x350x1580mm |
