Universal Testing Machine

Fully automatic torque testing machine RS-6300T-H Fully automatic torque testing machine RS-6300T-H

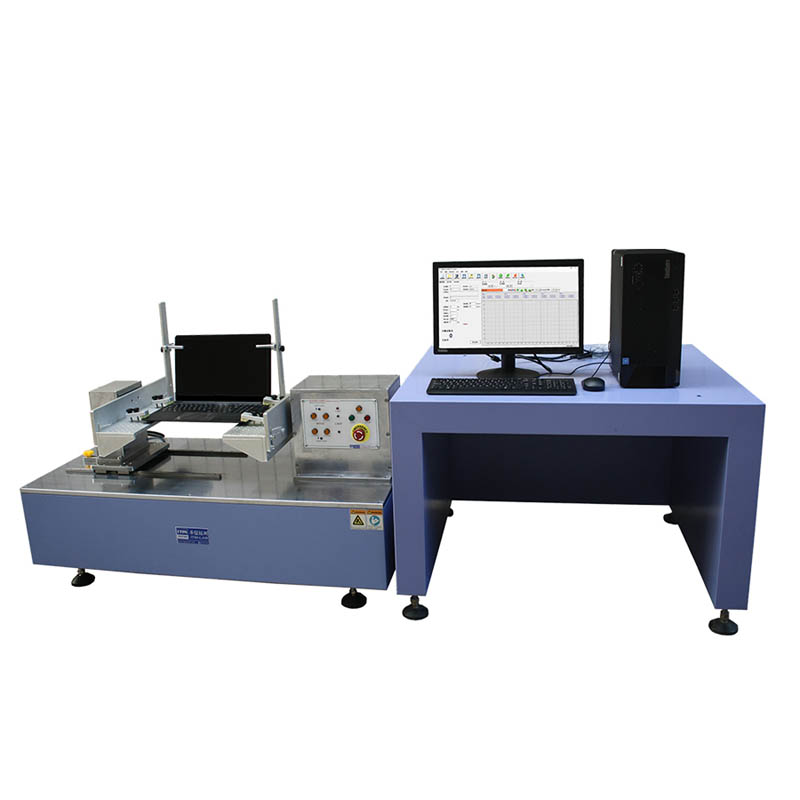

Fully automatic torsion testing machine RS-6300T-H

This machine is designed to perform bending and wear tests on laptops, tablets, e-readers, computer keyboards, and other devices. It can measure torque with each rotation in both directions. All data can be stored (test conditions, torque-angle curve, wear curve, test report, etc.)
Delivery Terms: EXW, FOB, CIF
Min. Order: 1 Set
Supply Ability: 500 Sets/Month
Completion time: 30 days

GET A QUOTE

PRODUCT APPLICATION

This machine is designed to perform bending and wear tests on laptops, tablets, e-readers, computer keyboards, and other devices. It can measure torque with each rotation in both directions. All data can be stored (test conditions, torque-angle curve, wear curve, test report, etc.)

PRODUCT PARAMETERS


model RS -6300T-H
Machine testing space W450xL550mm (meets 17-inch laptop test)
Maximum test torque 20N.m(200kgf.cm)
Torque accuracy ≤±0.5%FS
Minimum display torque 0.001N.m(0.01kgf.cm)
Minimum angle display 0.001 0
Rotation angle ± 80 °
Hold/interval time 0~9999sec
Test Count 1~9999999раз
Test speed range 60 ~150 00 0 /min
Intelligent Support RJ45 network remote operation and monitoring, web access
volume 1250×611×1000 mm
weight 125kg
power supply AC220V  50Hz   5A
